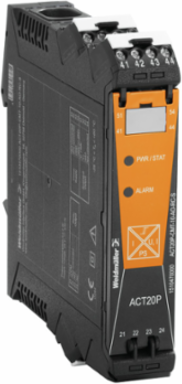

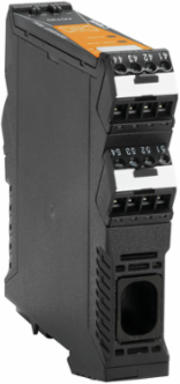

Weidmuller 1510390000 ACT20P Current Monitoring Converter, 0-60 A AC/DC, 22.5 mm Wide, 4.693 Inch High
- MPN: 1510390000
- PPN: WDM-1510390000
CAD
$318.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Limit value monitoring, Signal converter/isolator, Current monitoring, Screw connection, Input measurement range: configurable, 0…40/50/60 A AC or DC
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.75 % FSR, < 1.5 % FSR with measurement range 50/60 A AC
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Rail
- TS 35
- Temperature coefficient
- 0.01%/K @ 0...40 A, 0.10%/K @ 40...55 A, 0.30%/K @ 55...60 A

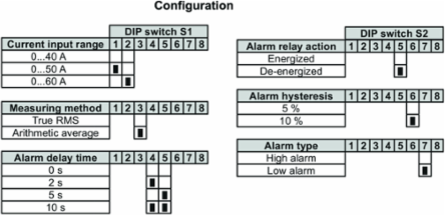

ConfigurationDIP switch and potentiometer
Power consumption, max.2.2 W
Step response time≤ 300 ms (RMS), ≤ 60 ms (AA)
Voltage supply16,8 V…31,2 V
Probability Of Failure
- MTTF
- 100 Years
Approvals
- Approvals
- CULUS, DNV GL, EAC
- UL File Number Search
- E141197
ROHSConform

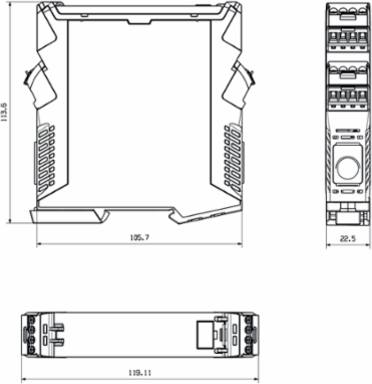

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 119.2 mm
- Depth
- 113.6 mm
- Net weight
- 158 g
Width (inches)0.886 inch
Height (inches)4.693 inch
Depth (inches)4.472 inch
Output (Digital)

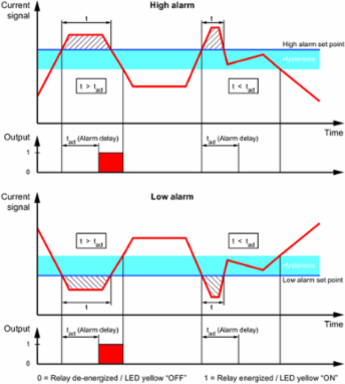

- Alarm function
- Surge current, Under-current, Alarm delay: 0...10 s, Hysteresis 5% / 10%
- Type
- Relay, 1 CO contact, normal / inverse adjustment
- Max. switching voltage, AC
- 250 V
Number of digital outputs1
Max. switching voltage, DC24 V
Rated switching current6 A
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Input
- Number of inputs
- 1
- Input measurement range
- configurable, 0…40/50/60 A AC or DC

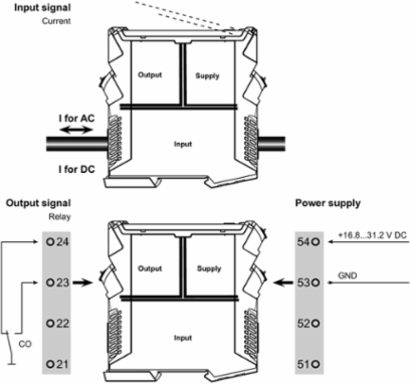

Input signalCurrent-carrying cable in feed-through hole, Diameter 10.5 mm
Input frequencyAC: 15…700 Hz (true root mean square), AC: 50 Hz (arithmetic average)
Classifications
- ETIM 6.0
- EC002475
- eClass 9.0
- 27-21-01-23
- eClass 10.0
- 27-21-01-23
ETIM 7.0EC002475
eClass 9.127-21-01-23
Product Information
- Product information
- The ACT20P-CMT-XX-(AO)-RC-S series of devices measure and monitor AC and DC currents of up to 60 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output.. Features Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through-hole technology Limit value monitoring for overcurrent or undercurrent Relay output by means of the open-circuit / closed-circuit principle Adjustable trigger delay for filtering current peaks Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107 Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- IEC 61326-1, IEC 61010-2-201
- Impulse withstand voltage
- 6.4 kV (1.2/50 µs)
- Pollution severity
- 2
- Surge voltage category
- III
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Insulation voltage4 kVeff / 1 min.
Rated voltage300 V AC eff
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
