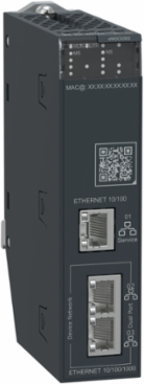

Schneider Electric BMENOC0302 Communication module, Modicon M580, performance, Ethernet IP/Modbus TCP
- MPN: BMENOC0302
- PPN: SCH-BMENOC0302
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Communication module, Modicon M580, performance, Ethernet IP/Modbus TCP
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Communications & Management Attributes
- Communication Service
- bandwidth management, FDR server, SNMP network administrator, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, RSTP support, port mirroring, embedded multiport switch
Complementary Attributes
- Integrated Connection Type
- 2 Ethernet RJ45 10/100/1000 Mbit/s double shielded twisted pair1 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair
Maximum Number Of Modules Per Rack6
Important Information Attributes
- Cybersecurity
- secure communication (HTTPS), certificate based authentication, system hardening, role-based access control, Syslog protocol support, IPSec (initiator and responder role), Achilles level 2 tested, SNMP logging
- Local Signalling
- 1 LED (green) for processor running (RUN)1 LED (red) for processor or system fault (ERR)1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (green/red) for Eth NS (Ethernet network status)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.070221140625, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2137721484375, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 24 kg CO2 eq., 23.54560000000001
- Local Publishable Date
- 2026-04-18
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Current Consumption
- 155 mA 24 V DC
- Exchange Mode
- half duplex and full duplex
- Mounting Location
- main rack
- Product Or Component Type
- communication module
- Range Of Product
- Modicon M580
- Shock Resistance
- 30 gn
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Transmission Support Medium
- Ethernet backplane
- Web Server
- advanced
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27

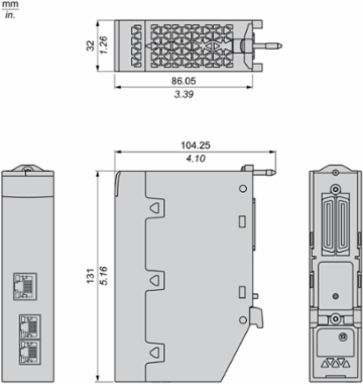

- Height Nominal
- 131 mm
- Width Nominal
- 32 mm
- Package Weight(Lbs)
- 546.000 g
- Customs Code
- 8517620020
Function Availablehot swappable module, Advanced diagnostic information (DDT, web pages, Modbus TCP and EIP Objects), SCADA connection through Modbus TCP
Certificate AgencyCE, RCM, cULus, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.864234375
Carbon Footprint Of The Manufacturing Phase [A1 To A3]37 kg CO2 eq., 36.574734375
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2430
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Backplane Slot LocationEthernet + X-bus Slot
Device Applicationprocess and control communication module
MarkingCE
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentstandard version
ReturnabilityYes
Slot Occupied By Module1
Supplyinternal power supply via rack
Total Lifecycle Carbon Footprint61 kg CO2 eq.
Vibration Resistance3 gn
Pep CodeENVPEP2402021EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Length Total86.05 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Product Compatibility
- Modicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402021EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
Take BackNo
China Rohs RegulationX
Carbon Footprint61.26856203906251
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000 m...5000 m with derating factor
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- communication module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
