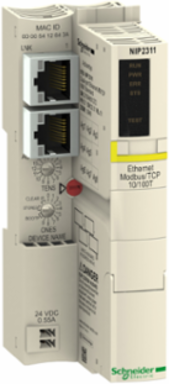

Schneider Electric STBNIP2311 Modicon STB Network Interface Module, 24V DC, Ethernet Modbus TCP/IP

MPN: STBNIP2311
PPN: SCH-STBNIP2311

$716.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 130mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Depth	70 mm

Communications & Management Attributes

Communication Service	SNMP agent, BootP/DHCP protocol, Modbus TCP/IP messaging, embedded web (configuration,diagnostics and access to variable)

Complementary Attributes

Integrated Connection Type	Ethernet Modbus TCP/IP IEEE 802.3 2 female RJ45 double shielded twisted pair via Ethernet network)Ethernet Modbus TCP/IP IEEE 802.3 HE-13 RS232 port), Ethernet Modbus TCP/IP IEEE 802.3 8-way female RS232 port)

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Local Signalling	1 LED ACT, 1 LED island state (RUN), 1 LED module error (ERR), 1 LED MS, 1 LED NS, 1 LED power supply (PWR), 1 LED test mode (TEST)
Certificate Agency	UL, ODVA, C-tick, ATEX Cat 3G, CSA
Local Publishable Date	2024-01-12
Stocking Flag	Y
Device Type	Automation - Distributed inputs/ouputs
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2023
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Market Segmentation	Industrial
Bearing Track Assembly Possible	true
Front Installation Possible	false
Network Type	AC/DC
Number Of Segments	1 primary, maximum 6 extensions
Product Availability	Stock - Normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon STB distributed I/O solution
Shock Resistance	30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Potential Separation Present	true
Radio Standard Egprs	false
Pep Code	ENVPEP0808003EN
Width Nominal	130 mm
Appendant Operation Agent (Ex Ia)	false
Certified For Ul Hazardous Location Group A (Acetylene)	false
Certified For Ul Hazardous Location Group C (Ethylene))	false
Certified For Ul Hazardous Location Group E (Metal Dusts)	false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)	false
Performance Level According To En Iso 13849-1	none
Radio Standard Wi-fi 802.11	false
Supporting Protocol For Data-highway	false
Supporting Protocol For Interbus-safety	false
Wall Mounting/Direct Mounting Possible	false
Package Weight(Lbs)	171.000 g
Warranty (In Months)	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Vibration Resistance	+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Exchange Mode	half or full duplex
Marking	CE
Number Of Hw Interfaces Industrial Ethernet	2
Power Supply Type	SELV
Product Or Component Type	standard Network Interface Module
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Structure Type	industrial LAN
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Transmission Rate	10/100 Mbit/s
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
System Accessory	true
Radio Standard Lte	false
Height Nominal	40.5 mm
Number Of Addressable I/O Module	0-32 per island
Appendant Operation Agent (Ex Ib)	false
Certified For Ul Hazardous Location Group B (Hydrogen)	false
Certified For Ul Hazardous Location Group D (Propane))	false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)	false
Io-link Master Present	false
Rack-assembly Possible	true
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8517620090

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C with derating factor, -25-70 °C with derating factor, 0-60 °C without derating, -25-70 °C with derating factor, -25-70 °C with derating factor
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP0808003EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP0808003EN

Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % 60-60 °C without condensation
