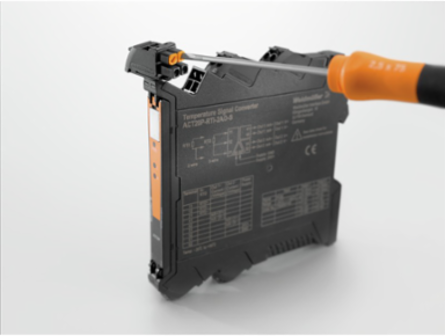

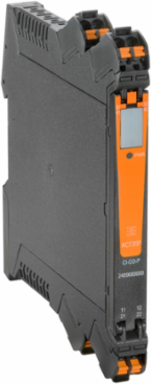

Weidmuller 1481960000 ACT20P-PRO DCDC II-P Signal Converter/Insulator, 24-230 V AC/DC, 12.5 mm Width
- MPN: 1481960000
- PPN: WDM-1481960000
CAD
$623.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ACT20P, Signal converter/insulator, Signal converter/isolator, universal, 24…230 V AC/DC power supply
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.05 % of measuring range
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Rail
- TS 35
- Temperature coefficient
- ≤0.01% of the output measurement range ⁄ °C

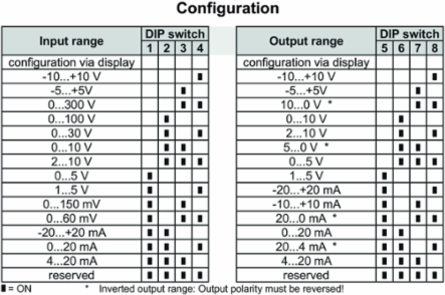

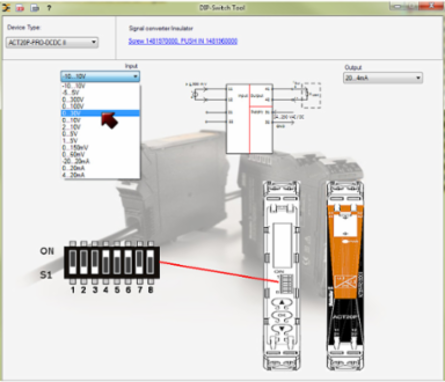

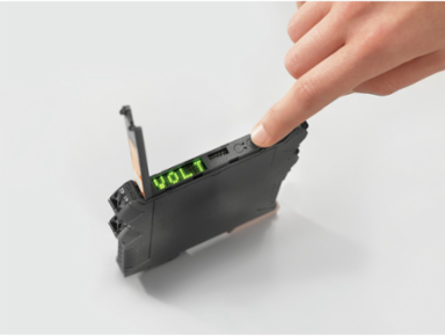

ConfigurationDIP switch, or via display and push-buttons
Power consumption≤2.3 W
Step response time≤50 µs
Voltage supply24…230 V DC ±20 %, 24…230 V AC ±10 % @ 48…62 Hz
Approvals
- ROHS
- Conform
Display
- Type
- Dot-matrix display with ticker text, green
Display valuecurrent measured value, Configuration data
Dimensions And Weights
- Width

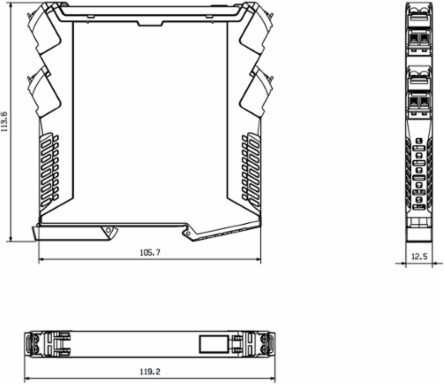

- 12.5 mm
- Height
- 127.1 mm
- Depth
- 113.7 mm
- Weight
- 130 g
Width (inches)0.492 inch
Height (inches)5.004 inch
Depth (inches)4.476 inch
Net weight20 g

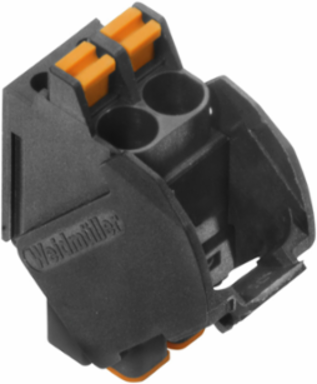

Connection Data
- Type of connection

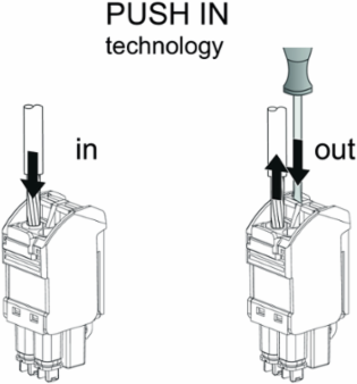

- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²
Input
- Number of inputs
- 1
- Input voltage
- configurable, ±40 mV…±300 V, Measuring range. min 40 mV
- Input current
- configurable, ± 0.1mA...± 100 mA, Measuring range min. 200 µA
Input signalVoltage source, Current source
Input resistance, voltageapprox. 1 MΩ
Input resistance, current< 5 mA: approx. 100 Ω; >5 mA: approx. 5 Ω
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Output voltage, note
- Adjustable, 0...±10 V
- Cut-off frequency (-3 dB)
- > 10 kHz/ < 10 Hz
- load impedance current
- ≤ 600 Ω
- Offset current
- 20 µA
Output currentAdjustable, 0...±20 mA
load impedance voltage≥ 1 kΩ
Offset voltage< 10 mV
Status indicatorGreen LED
Product Information
- Product information

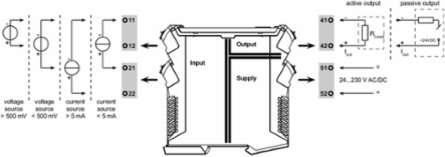

- The universally configurable DC isolating amplifier ACT20P-PRO DCDC II isolates and converts analogue signals. An analogue input signal (current or voltage) is linearly converted into an analogue output signal (current or voltage) and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation). Properties universal wide-range voltage supply universally configurable via DIP switch or via the LED display using control buttons Active or passive signal output Operating status display on a front panel LED Galvanic 3-way isolation between input, output and supply.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- EN 60079-0, EN 60079-15, EN 61010-1, EN 61140, EN 61326-1, UL 61010-1, SN29500 for MTBF
- Impulse withstand voltage
- 5 kV (1.2/50 µs)
- Pollution severity
- 2
- Surge voltage category
- II
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Insulation voltage4 kVeff, input ⁄ output ⁄ power supply
Rated voltage600 V
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- DEMKO15ATEX1397X
Loading video…
