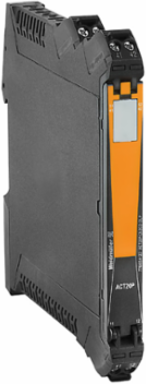

Weidmuller 7760054122 Signal Distributor 4-20 mA Input, 2 Galvanically Isolated Outputs, 105 g
- MPN: 7760054122
- PPN: WDM-7760054122
CAD
$295.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal distributor, Output current loop powered, Input : 4-20 mA, Output : 2 x 4-20 mA
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.1 % of end value
- Galvanic isolation
- 2-way isolator
- Step response time
- ≤ 2 ms
- Voltage supply
- via output current loop, min. 12 V DC/ max. 30 V DC
Configurationnone
RailTS 35
Temperature coefficient≤ 100 ppm/K
Approvals
- Approvals
- EAC
ROHSConform

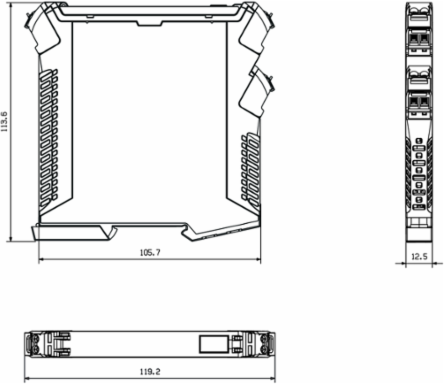

Dimensions And Weights
- Width
- 12.5 mm
- Height
- 117.2 mm
- Depth
- 114 mm
- Weight
- 131 g
Width (inches)0.492 inch
Height (inches)4.614 inch
Depth (inches)4.488 inch
Net weight105 g
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Input
- Number of inputs
- 1
- Input current
- 4…20mA
SensorCurrent source
Voltage drop, current input< 3 V
Classifications
- ETIM 6.0
- EC002475
- eClass 9.0
- 27-21-01-23
- eClass 10.0
- 27-21-01-23
ETIM 7.0EC002475
eClass 9.127-21-01-23
Output
- Number of outputs
- 2
- load impedance current
- RL = (UB-12 V) / 20 ± 20mA, e.g. 600 Ω at 24 V
Output current4...20 mA, loop-powered
Product Information
- Product information

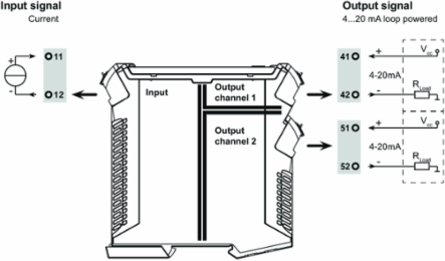

- The ACT20P-CI-2CO-OLP-S fixed passive isolator isolates analogue standard current source signals. An analogue input current signal is converted linearly and doubled to provide two galvanically separated output current signals. The device is powered via the output current loop. Features 3-way galvanic isolation between input, output 1 and output 2.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61010-1:2011, UL 61010-1, IEC61000-6-2, IEC 61000-6-4
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Pollution severity
- 2
- Surge voltage category
- III
Galvanic isolation2-way isolator
Insulation voltage2 kV (Input /Output), 1 min, 50 Hz
Rated voltage300 V
Temperatures
- Humidity
- 5...95 %, no condensation
Ambient temperature-20 °C...+60 °C
