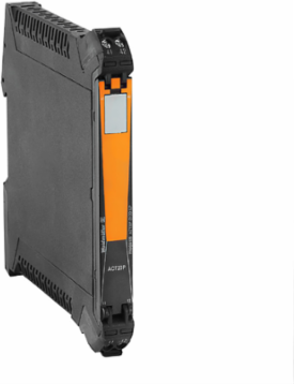

Weidmuller 7760054123 ACT20P Signal Converter/Isolator, 0(4)-20 mA Input/Output, 12.5 mm Width
- MPN: 7760054123
- PPN: WDM-7760054123
CAD
$248.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/isolator, Input current loop feed, Input : 0(4)-20 mA, Output : 0(4)-20 mA
Documentation & Downloads
Specifications
General Data
| Accuracy | < 0.1 % of end value |
|---|---|
| Galvanic isolation | 2-way isolator |
| Step response time | ≤ 1 ms |
| Voltage supply | Loop powered, via 4…20 mA input |
| Configuration | none |
|---|---|
| Rail | TS 35 |
| Temperature coefficient | ≤ 100 ppm/K |
Approvals
| Approvals | EAC |
|---|

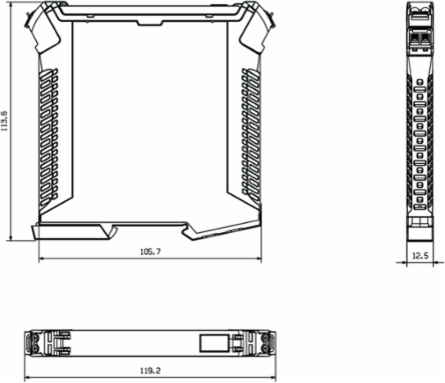

Dimensions And Weights
| Width | 12.5 mm |
|---|---|
| Height | 117.2 mm |
| Depth | 114 mm |
| Weight | 126 g |
| Width (inches) | 0.492 inch |
|---|---|
| Height (inches) | 4.614 inch |
| Depth (inches) | 4.488 inch |
| Net weight | 100 g |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 2.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
Input
| Number of inputs | 1 |
|---|---|
| Input current | 0(4)...20 mA current loop |
| Sensor | Current source |
|---|---|
| Voltage drop, current input | 3.8 V |
Classifications
| ETIM 6.0 | EC002475 |
|---|---|
| eClass 9.0 | 27-21-01-23 |
| eClass 10.0 | 27-21-01-23 |
| ETIM 7.0 | EC002475 |
|---|---|
| eClass 9.1 | 27-21-01-23 |
Output
| Number of outputs | 1 |
|---|---|
| load impedance current | ≤ 600 Ω |
| Output current | 0(4)...20 mA |
|---|
Product Information

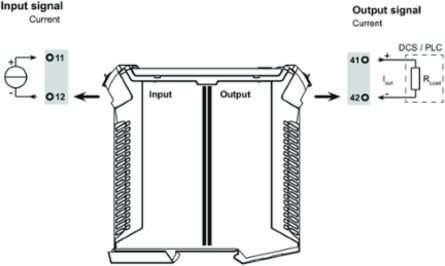

| Product information | The ACT20P-CI-CO-ILP-S fixed passive isolators isolate analogue standard current source signals. An analogue input current signal is converted linear and galvanic isolated into an analogue output current signal. The device is powered via the input current loop. Features Galvanic 2-way isolation (single-channel device) between input and output. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 61010-1:2011, UL 61010-1, IEC61000-6-2, IEC 61000-6-4 |
|---|---|
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Pollution severity | 2 |
| Surge voltage category | III |
| Galvanic isolation | 2-way isolator |
|---|---|
| Insulation voltage | 2 kV inputs / outputs |
| Rated voltage | 300 V |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|
| Ambient temperature | -20 °C...+60 °C |
|---|
