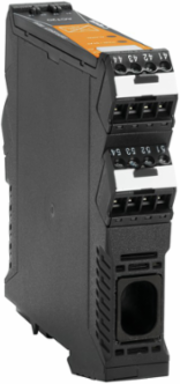

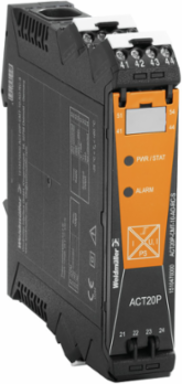

Weidmuller 1510290000 Current-measuring Transducer 60 A AC/DC, PUSH IN, 4-Way Isolation

MPN: 1510290000
PPN: WDM-1510290000

$495.33

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

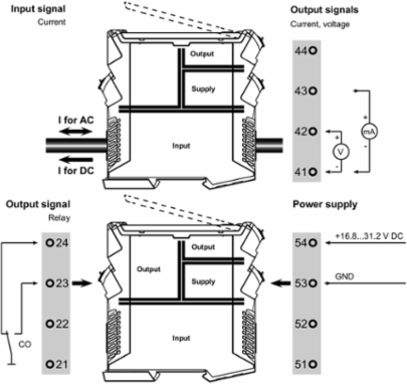

Current-measuring transducer, Limit value monitoring, Signal converter/isolator, Current monitoring, Analogue output, PUSH IN connection, Input measurement range: configurable, 0…40/50/60 A AC or DC

Documentation & Downloads

Specifications

General Data

Accuracy	< 0.75 % FSR
Galvanic isolation	4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
Rail	TS 35
Temperature coefficient	0.01%/K @ 0...40 A, 0.10%/K @ 40...55 A, 0.30%/K @ 55...60 A

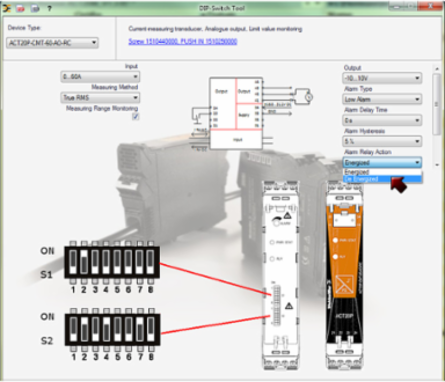

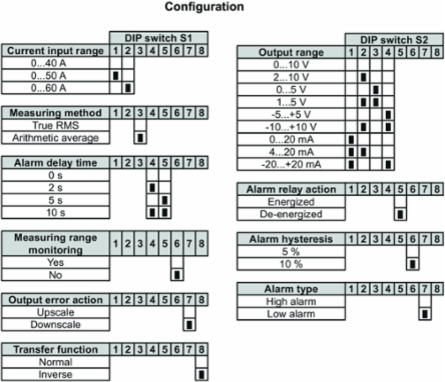

Configuration	DIP switch and potentiometer, for thresholds (overcurrent ⁄ undercurrent), delay and hysteresis
Power consumption, max.	2.2 W
Step response time	≤ 300 ms (RMS), ≤ 60 ms (AA)
Voltage supply	16,8 V…31,2 V

Probability Of Failure

MTTF	158 Years

Approvals

ROHS	Conform

UL File Number Search	E141197

Dimensions And Weights

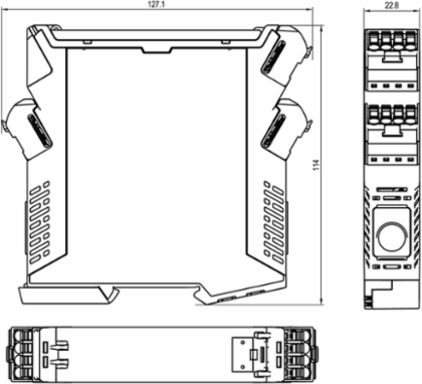

Width	22.8 mm
Height	127.1 mm
Depth	114 mm
Net weight	158 g

Width (inches)	0.898 inch
Height (inches)	5.004 inch
Depth (inches)	4.488 inch

Output (Digital)

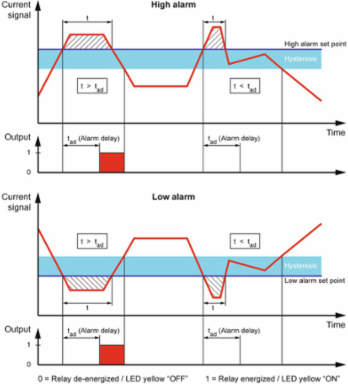

Alarm function	Surge current, Under-current, Alarm delay: 0...10 s, Hysteresis 5% / 10%
Type	Relay, 1 CO contact, normal / inverse adjustment
Max. switching voltage, AC	250 V

Number of digital outputs	1
Max. switching voltage, DC	24 V
Rated switching current	6 A

Connection Data

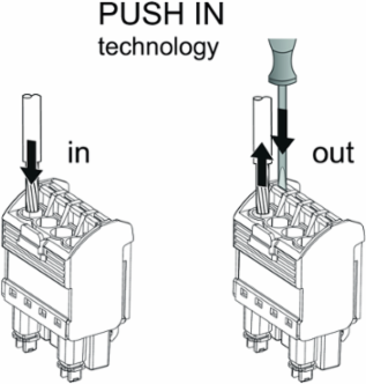

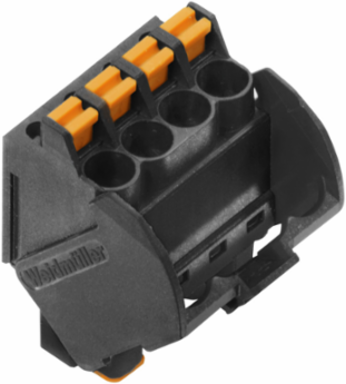

Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 14
Wire cross-section, solid, max.	2.5 mm²
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²

Wire connection cross section AWG, min.	AWG 26
Wire cross-section, solid, min.	0.2 mm²
Wire connection cross-section, finely stranded, min.	0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.2 mm²

Input

Number of inputs	1
Input measurement range	configurable, 0…40/50/60 A AC or DC

Input signal	Current-carrying cable in feed-through hole, Diameter 10.5 mm
Input frequency	AC: 15…700 Hz (true root mean square), AC: 50 Hz (arithmetic average)

Output (Analogue)

Load resistance current	≤ 600 Ω
Output current	Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
Type (analogue output)	Voltage and current output (configurable)

Load resistance voltage	≥ 10 kΩ
Output voltage	Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V

Classifications

ETIM 6.0	EC002475
eClass 9.0	27-21-01-23
eClass 10.0	27-21-01-23

ETIM 7.0	EC002475
eClass 9.1	27-21-01-23

Product Information

Product information

The ACT20P-CMT-XX-(AO)-RC-P series of devices measure and monitor AC and DC currents of up to 60 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The devices feature integrated limit value monitoring with an adjustable switching threshold, delay and hysteresis, as well as a relay output.. Features Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement and contactless through-hole technology Limit value monitoring for overcurrent or undercurrent Relay output by means of the open-circuit / closed-circuit principle Adjustable trigger delay for filtering current peaks Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107 Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201
