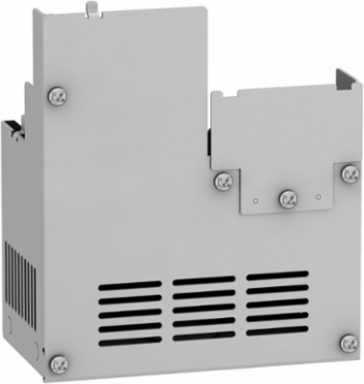

Schneider Electric VW3A95816 Altivar Machine ATV320 UL Type 1 Conformity Kit, 4C Frame Size

MPN: VW3A95816
PPN: SCH-VW3A95816

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$75.45

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 4C (150mm/6.1in wide x 174.5mm/6.87in high, and 82mm/3.23in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320U55M3C, ATV320U75M3C, ATV320U55N4C, and ATV320U55N4C drives. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Features

Specifically engineered for the Schneider Electric Altivar 320 series, this kit ensures a factory-perfect fit without the need for field modifications. Using OEM-certified mounting hardware maintains the drive s thermal efficiency and airflow requirements, preventing premature equipment failure caused by overheating or improper enclosure ventilation.
Designed to upgrade your Altivar frequency drives to an official UL Type 1 rating, this conformity kit provides the necessary mechanical protection for indoor, non-hazardous environments. Installing this kit ensures your VFD installation meets strict North American building codes and industrial safety regulations, shielding the drive from falling dirt and accidental contact with live internal components.
Precision-engineered with high-grade galvanized steel, the VW3A95816 maintains the critical airflow patterns required for the Altivar drive's thermal management system. The design ensures that while the internal components are protected from physical ingress, the drive can still vent heat effectively, preventing thermal tripping and ensuring continuous high-torque performance under heavy industrial loads.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Singapore, United States

Important Information Attributes

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Product/component not in scope – not electric/electronic device
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Mounting Location	underside of drive
Range Of Product	Altivar
Sustainable Packaging	No
Accessory / Separate Part Category	mounting and fixing accessories
Accessory / Separate Part Type	kit for UL type 1 conformity
Package Weight(Lbs)	1.3 kg
Warranty (In Months)	18

Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1927
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Kit Composition	mechanical device
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Certificate Agency	UL Type 1
Accessory / Separate Part Destination	variable speed drive
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504909690

Environment Attributes Main

Product Compatibility	variable speed drive ATV320...C 7.5 kW, 525...600 V, three phasevariable speed drive ATV320...C 5.5 kW, 200...240 V, three phase, variable speed drive ATV320...C 7.5 kW, 200...240 V, three phase, variable speed drive ATV320...C 5.5 kW, 525...600 V, three phase
Reach Free Shvc	Yes
China Rohs Regulation	X
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
