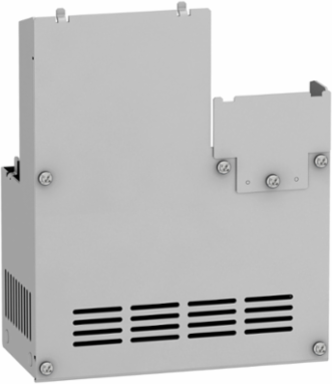

Schneider Electric VW3A95818 UL Type 1 Conformity Kit for Altivar Machine ATV320, 5C Size

MPN: VW3A95818
PPN: SCH-VW3A95818

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$75.45

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 5C (180mm/7.08in wide x 222mm/8.74in high, and 83.5mm/3.29in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320D11M3C, ATV320D15M3C, ATV320D11N4C, and ATV320D15N4C drives. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Features

Specifically engineered as a dedicated hardware accessory, the VW3A95818 is compatible with Schneider Electric Altivar Machine ATV320 and Altivar 32 series drives. This ensures a precision mechanical fit for Frame Size 4 drives, eliminating the guesswork and "field-mod" risks associated with generic mounting solutions.
Featuring a dedicated conduit entry plate and integrated cable management points, the VW3A95818 allows for clean, professional routing of power and control wiring. This prevents excessive tension on the drive's internal terminal blocks, significantly reducing the risk of intermittent faults or wire fatigue caused by vibration or gravity.
Designed for rapid field installation, the kit includes all necessary mounting hardware to secure the cover directly to the base of the drive. This "plug-and-play" mechanical approach minimizes machine downtime during maintenance or system upgrades, allowing industrial technicians to achieve a factory-finished look in minutes.
Manufactured from high-grade, heat-resistant materials, this kit is built to maintain its structural integrity under the thermal loads generated by high-performance motor control. It ensures that your VFD remains protected against falling dirt and debris without compromising the airflow required for optimal cooling and drive longevity.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Singapore

Important Information Attributes

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Product/component not in scope – not electric/electronic device
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Mounting Location	underside of drive
Range Of Product	Altivar
Sustainable Packaging	No
Accessory / Separate Part Category	mounting and fixing accessories
Accessory / Separate Part Type	kit for UL type 1 conformity
Package Weight(Lbs)	1.6 kg
Warranty (In Months)	18

Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1927
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Kit Composition	mechanical device
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Certificate Agency	UL Type 1
Accessory / Separate Part Destination	variable speed drive
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504909690

Environment Attributes Main

Product Compatibility	variable speed drive ATV320...C 15 kW, 525...600 V, three phasevariable speed drive ATV320...C 11 kW, 200...240 V, three phase, variable speed drive ATV320...C 15 kW, 200...240 V, three phase, variable speed drive ATV320...C 11 kW, 525...600 V, three phase
Reach Free Shvc	Yes
China Rohs Regulation	X
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
