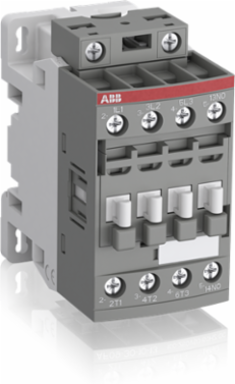

ABB AF12-30-01-41 24-60V 3-Pole Contactor, 5.5 kW at 400V, 28A AC-1, Screw Terminals
- MPN: AF12-30-01-41
- UPC: 888614138780
- PPN: ABB-AF12-30-01-41
- UNSPSC: 39121529
CAD
$210.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF12-30-01-41 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Additional
- Motor Power Rating
- 5.5 kW / 400 V AC
- Voltage
- 24-690 V AC, 24-60 V Control Voltage
- Rated Operational Current AC-3 (Ie)
- 7 A to 12.5 A depending on voltage and poles
- Rated Operational Current DC-1 (Ie)
- 15 A to 27 A depending on voltage and poles
- Rated Operational Current AC-15 (Ie)
- 2 A to 6 A depending on voltage
- Horsepower Rating UL/CSA
- 1 hp to 10 hp depending on voltage
- Continuous Current Rating NEMA
- 18 A
- Maximum Mechanical Switching Frequency
- 3600 cycles per hour
- Rated Operational Voltage
- 690 V main and auxiliary circuits
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Short-time Withstand Current Low Voltage (Icw)
- 150 A for 10 s at 40 C
- NEMA Size
- 0
- Maximum Operating Altitude
- 3000 m without derating
- Product Net Weight
- 0.27 kg
- Terminal Type
- Screw Terminals
- Connecting Capacity Control Circuit
- Rigid Solid 18-14 AWG, Stranded 18-14 AWG, Flexible with Ferrule 0.75-2.5 mm2
- Tightening Torque
- Main Circuit 13 in lb, Control and Auxiliary Circuit 11 in lb
- Number of Main Contacts NO
- 3
- Number of Auxiliary Contacts NO
- 0
- Resistance to Vibrations
- 5-300 Hz, 4 g closed / 2 g open
- Climatic Withstand
- Category B (IEC 60947-1 Annex Q)
- RoHS Status
- Prop 65 Compliant, EU Directive 2011/65/EU
Motor Horsepower7.5 hp / 480 V UL
Rated Operational Power AC-3 (Pe)3 kW to 7.5 kW (220 V to 690 V)
Rated Operational Current AC-1 (Ie)28 A (690 V)
Rated Operational Current DC-3 (Ie)7 A to 27 A depending on voltage and poles
Switching Current28 A (AC-1)
Horsepower Rating NEMA1 Hp to 5 Hp depending on voltage and phase
Maximum Electrical Switching Frequency1200 cycles per hour (AC-3)
Rated Control Circuit Voltage (Uc)24 to 60 V (50/60 Hz)
Rated Insulation Voltage (Ui)690 V AC (IEC), 600 V (UL/CSA)
Maximum Breaking Capacity250 A (440 V), 106 A (690 V)
Poles3
Ambient Air Temperature-40 to 70 C operating
Product Net Dimensions86 mm H x 45 mm W x 77 mm D
Mounting TypeDIN Rail TH35-15/7.5 (IEC 60715), 2x M4 screws
Connecting Capacity Main CircuitRigid Solid 16-10 AWG, Stranded 16-10 AWG, Flexible with Ferrule up to 6 mm2
Connecting Capacity Auxiliary CircuitRigid Solid 18-14 AWG, Stranded 18-14 AWG, Flexible with Ferrule 0.75-2.5 mm2
Wire Stripping Length10 mm for all circuits
Number of Auxiliary Contacts NC1
Degree of ProtectionIP20 (Auxiliary, Coil, Main Terminals)
Resistance to ShockUp to 30 g various directions
StandardsIEC 60947-1/-4-1, EN 60947-1/-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
