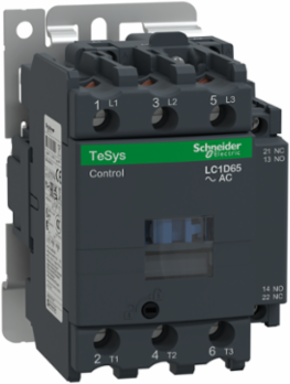

Schneider Electric LC1D65G7 TeSys Deca Contactor 3-Pole 65A 120V AC with Screw Clamp Terminals
- MPN: LC1D65G7
- PPN: SCH-LC1D65G7
CAD
$506.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (30kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Features
- The Schneider Electric LC1D65G7 is a 3-pole TeSys Deca (formerly TeSys D) contactor designed for heavy-duty power switching. Unlike a control relay, this unit is built to handle high-current loads, making it a primary component for starting and stopping industrial motors, heaters, and lighting systems in Canadian manufacturing and commercial facilities.
- Rated for 65 Amps (AC-3), this contactor is a powerhouse. In a typical 3-phase Canadian industrial setup, it can safely control a motor up to 50 HP at 600V or 40 HP at 480V. For non-inductive resistive loads (AC-1), its capacity increases to 80 Amps, making it suitable for large industrial heating banks.
- The "G7" suffix indicates a 120V AC (50/60Hz) coil. This is the most prevalent control voltage for industrial panels in Canada, allowing the contactor to be integrated easily into circuits powered by standard control transformers. The coil is designed to handle the wide voltage fluctuations often seen in heavy industrial environments without "chattering" or failing.
- Every LC1D65G7 comes standard with 1 Normally Open (NO) and 1 Normally Closed (NC) built-in auxiliary contact. These are essential for providing feedback to a PLC (indicating "Motor Running" or "Faulted") or for creating electrical interlocks with other contactors in reversing or multi-speed motor starters.
- A standout feature of the 65A model is Schneider s patented EverLinkTM terminal technology. These screw terminals utilize a spring-loaded system that maintains a constant pressure on the wire, even as the copper cold-flows or vibrates over time. This virtually eliminates the need for periodic re-tightening of lugs, a major time-saver for Canadian maintenance teams.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Germany, France, Mexico, United States
Depth119 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Maximum Horse Power Rating
- 20 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to UL20 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to CSA20 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to UL5 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL50 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to UL50 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to UL, 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA, 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL, 20 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA5 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA50 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to CSA, 50 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to CSA
- Maximum Motor Phase Current
- 65 A
- Minimum Switching Current
- 5 mA for control circuit
- Rated Breaking Capacity
- 1000 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (60-60 °C):operational AC 50 Hz0.85...1.1 Uc (60-60 °C):operational AC 60 Hz
Irms Rated Making Capacity140 A AC for control circuit conforming to IEC 60947-5-11000 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for control circuit conforming to IEC 60947-5-1125 A gG at <= 690 V coordination type 1 for power circuit, 125 A gG at <= 690 V coordination type 2 for power circuit
- Inrush Power In Va
- 140-140 VA cos phi 0.75 (at 20 °C), 160-160 VA cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- shocks contactor opened 10 Gn for 11 ms)shocks contactor closed 15 Gn for 11 ms)vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz)
- Mounting Support
- rail, plate
- Utilisation Category
- AC-1, AC-2, AC-4, AC-3
- Certificate Agency
- CCC, UL, BV, CSA, LROS (pending), GOST, RINA, GL, DNV
- [Ui] Rated Insulation Voltage
- power circuit 600 V ULpower circuit 690 V IEC 60947-1control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSAcontrol circuit 690 V IEC 60947-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1760063361869087, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3 kg CO2 eq., 0.2523595925959343
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 57 kg CO2 eq., 56.91943840579708
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 1 mOhm - Ith 80 A 50 Hz for power circuit
- Compatibility Code
- LC1D
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 4-5 W at 50/60 Hz for control circuit
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Power Dissipation Per Pole
- 6.4 W AC-1
- Product Or Component Type
- contactor
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1102005EN
- Pep Verification Date
- 2025-11-20
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 76
- Width Nominal
- 75 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for control circuit80 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Insulation Resistance> 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit
Motor Power Kw30 kW at 440 V AC 50/60 Hz (AC-3), 11 kW at 400 V AC 50/60 Hz (AC-4), 30 kW at 380...400 V AC 50/60 Hz (AC-3), 30 kW at 415 V AC 50/60 Hz (AC-3)37 kW at 1000 V AC 50/60 Hz (AC-3), 37 kW at 500 V AC 50/60 Hz (AC-3), 37 kW at 660...690 V AC 50/60 Hz (AC-3)18.5 kW at 220...230 V AC 50/60 Hz (AC-3)
Tightening Torquecontrol circuit 1.2 N.m screw clamp terminal flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw clamp terminal flat Ø 6 mm, power circuit 5 N.m screw clamp terminal flat Ø 8 mm
Control Circuit Voltage120 V
[Uc] Control Circuit Voltage120 V, 120 V AC 50/60 Hz
Connections - Terminalscontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 2.5-35 mm² - cable stiffness: solid with cable endpower circuit: connector 1 2.5-35 mm² - cable stiffness: flexible without cable endpower circuit: connector 2 2.5-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 2.5-35 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 2.5-35 mm² - cable stiffness: flexible with cable endscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 2.5-35 mm² - cable stiffness: solid with cable end
Terminals Description Iso N°1(A1-A2)CO, (13-14)NO, (21-22)NC, (A1-A2)CO, (13-14)NO, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.328416174215296, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.921945858891672
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in bidirectional peak limiting diode suppressor
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability6 Mcycles
Operating Time12...26 ms closing4...19 ms opening
Pole Contact Composition3 NO
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint70 kg CO2 eq.
Inf Motor Phase Current65 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh851.91
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal127 mm
[Ie] Rated Operational Current80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Hold-in Power Consumption In Va13-13 VA 50 Hz cos phi 0.3 (at 20 °C)15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)1.439 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Permissible Ambient Air Temperature Around The Device
- -5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc-5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 69.59816636768689
- Environmental Disclosure
- ENVPEP1102005EN
- Operating Altitude
- 9842.52 ft (3000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-20
- Psr Version
- PSR-0005-ed2-2016 03 29
Ip Degree Of ProtectionIP2X IEC 60529, IP2X VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Climatic WithstandIACS E10 exposure to damp heat
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1102005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
