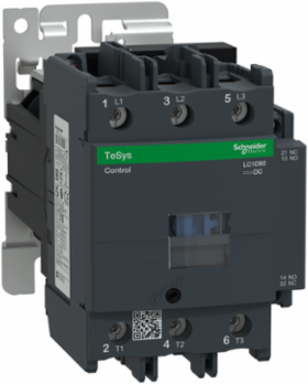

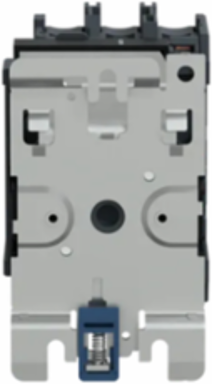

Schneider Electric LC1D80BD TeSys Deca Contactor 3P 80A 24V DC Coil, Screw Clamp Terminals

MPN: LC1D80BD
PPN: SCH-LC1D80BD

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$694.29

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 7.32 inches deep. It weighs 5.71 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Features

Part of the globally recognized TeSys Deca series, this 3-pole contactor is designed for seamless mechanical and electrical integration with Schneider Electric s wide ecosystem of thermal overload relays and auxiliary contact blocks. This modularity allows for rapid DIN-rail or plate mounting, significantly reducing assembly time for industrial panel builders and electrical engineers.
Specifically engineered for high-demand industrial applications, this contactor supports up to 80 Amps for AC-3 inductive loads (motor control) and 125 Amps for AC-1 resistive loads (heating/lighting). It provides a robust 37kW power rating at 400V, ensuring your large-scale pumps, fans, and compressors operate with maximum reliability and longevity under heavy switching cycles.
Featuring a high-efficiency 24V DC control circuit, this contactor is optimized for modern automation environments where low energy consumption and direct PLC output compatibility are required. The DC coil design eliminates the "hum" often found in AC equivalents and reduces heat dissipation within the control cabinet, extending the lifespan of sensitive electronic components nearby.
Built for extreme durability, the LC1D80BD is tested for millions of mechanical and electrical operations, offering superior arc-suppression technology that protects internal contacts from premature pitting and wear. This high-reliability engineering minimizes unscheduled maintenance and prevents costly production downtime in mission-critical manufacturing facilities.
Fully compliant with UL, CSA, IEC, and CCC standards, this contactor features IP20 finger-safe terminals and built-in auxiliary contacts (1NO + 1NC) for immediate status feedback. These certifications ensure your equipment meets the most stringent global safety requirements, making it the ideal choice for original equipment manufacturers (OEMs) exporting machinery to international markets.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France, United States

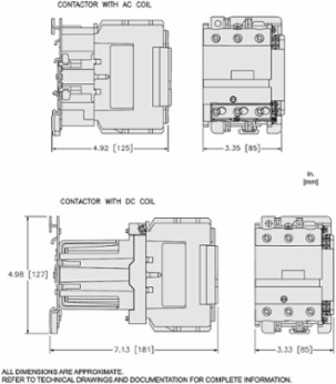

Depth	186 mm

Complementary Attributes

Maximum Horse Power Rating	30 hp at 230/240 V AC 50/60 Hz for 3 phase motors7.5 hp at 120 V AC 50/60 Hz for 1 phase motors15 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 30 hp at 200/208 V AC 50/60 Hz for 3 phase motors60 hp at 460/480 V AC 50/60 Hz for 3 phase motors, 60 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Control Circuit Voltage Limits	0.1...0.3 Uc (-40-70 °C):drop-out DC0.85...1.1 Uc (-40-55 °C):operational DC1...1.1 Uc (55-70 °C):operational DC
Maximum Motor Phase Current	80 A
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	1100 A at 440 V for power circuit conforming to IEC 60947

Control Circuit Type	DC standard
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11100 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate	3600 cyc/h at 60 °C
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contactor Application	motor control, resistive load
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	37 kW at 380/400 V AC 50/60 Hz (AC-3e), 45 kW at 415/440 V AC 50/60 Hz (AC-3e), 55 kW at 500 V AC 50/60 Hz (AC-3e), 45 kW at 660/690 V AC 50/60 Hz (AC-3e), 22 kW at 220/230 V AC 50/60 Hz (AC-3)37 kW at 380/400 V AC 50/60 Hz (AC-3)45 kW at 415/440 V AC 50/60 Hz (AC-3)55 kW at 500 V AC 50/60 Hz (AC-3), 45 kW at 660/690 V AC 50/60 Hz (AC-3), 22 kW at 220/230 V AC 50/60 Hz (AC-3e), 15 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole	5.1 W AC-312.5 W AC-1, 5.1 W AC-3e
Utilisation Category	AC-3, AC-3e, AC-1, AC-4
Certificate Agency	CCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
[Ui] Rated Insulation Voltage	signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V ULpower circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1
Non-overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]	6.414934876649745, 6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	17 kg CO2 eq., 17.19547636535516
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1924
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology	without built-in suppressor module
Contact Compatibility	M9
Fire Resistance	850 °C IEC 60695-2-1
Inrush Power In W	22-22 W 20 °C)
Number Of Poles	3P
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	THIEC 60068-2-30
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v5.9.4
Time Constant	75 ms
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current	80 A
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	2262.27
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; FR
Height Nominal	127 mm
[Icw] Rated Short-time Withstand Current	640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Uc] Control Circuit Voltage	24 V24 V DC
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Electrical Durability	0.8 Mcycles 125 A AC-1 <= 440 V, 1.5 Mcycles 80 A AC-3 <= 440 V, 1.5 Mcycles 80 A AC-3e <= 440 V
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz)shocks contactor open 8 Gn for 11 ms)vibrations contactor closed 3 Gn, 5...300 Hz), shocks contactor closed 10 Gn for 11 ms)
Mounting Support	plate, rail
Tightening Torque	control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2power circuit 12 N.m connector flat Ø 6 to Ø 8 mmpower circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage	24 V
[Ie] Rated Operational Current	125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC-3e for power circuit
Connections - Terminals	control circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable endpower circuit: connector 1 4-50 mm² - cable stiffness: solid without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: solid without cable endscrew clamp terminalscontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]	0.33922115667609654, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.5 kg CO2 eq., 0.4863785858697323
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	151 kg CO2 eq., 151.15110507246374
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Compatibility Code	LC1D
Device Short Name	LC1D
Flame Retardance	V1 conforming to UL 94
Mechanical Durability	4 Mcycles
Operating Time	95...130 ms closing20...35 ms opening
Pole Contact Composition	3 NO
Product Or Component Type	contactor
Range	TeSys
Returnability	Yes
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	176 kg CO2 eq.
Connections Terminals	screw clamp terminals
Pep Code	ENVPEP1102005EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %	76
Width Nominal	85 mm
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit125 A (at 60 °C) for power circuit
[Ue] Rated Operational Voltage	power circuit <= 300 V DC 25...400 Hzpower circuit <= 690 V AC
Hold-in Power Consumption In W	22-22 W 20 °C
Package Weight(Lbs)	2.585 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	175.58711605701447
Environmental Disclosure	ENVPEP1102005EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	-40-60 °C-40-60 °C60-70 °C with derating
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Climatic Withstand	IACS E10 exposure to damp heat
Eu Rohs Directive	Compliant
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1102005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
