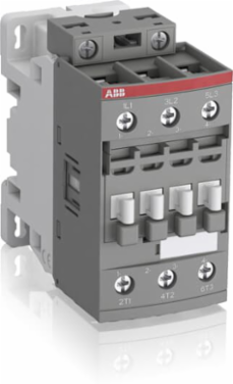

ABB AF38-30-00-41 24-60V 50/60Hz 3 Pole Contactor, 50A AC-1, 18.5kW at 400V
- MPN: AF38-30-00-41
- UPC: 888614119468
- PPN: ABB-AF38-30-00-41
- UNSPSC: 39121529
CAD
$508.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF38-30-00-41 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 18.5 kW / 400 V AC (AC-3) or 25 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Additional
- Voltage
- Main Circuit 690 V, Control Circuit 24-60 V 50/60 Hz
- Rated Operational Current DC-1 (Ie)
- (110 V) 2 Poles in Series 50 A at 40 C, 42 A at 60 C, 37 A at 70 C; (220 V) 3 Poles in Series 50 A at 40 C, 42 A at 60 C, 37 A at 70 C; (72 V) 1-Pole 50 A at 40 C, 42 A at 60 C, 37 A at 70 C
- Rated Operational Power AC-3 (Pe)
- (400 V) 18.5 kW, (415 V) 18.5 kW, (440 V) 22 kW, (500 V) 22 kW, (690 V) 22 kW, (380/400 V) 18.5 kW, (220/230/240 V) 11 kW
- Current Rating
- 50 A AC-1, 50 A UL general use
- Rated Insulation Voltage (Ui)
- 690 V IEC, 600 V UL/CSA
- Rated Control Circuit Voltage (Uc)
- 24-60 V 50/60 Hz
- Maximum Breaking Capacity
- 200 A at 440 V and 690 V, cos = 0.45 (cos = 0.35 for Ie > 100 A)
- Operate Time
- Coil de-energization to NC closing 13-98 ms, coil de-energization to NO opening 11-95 ms, coil energization to NC opening 38-90 ms, coil energization to NO closing 40-95 ms
- Number of Main Contacts NC
- 0
- Number of Auxiliary Contacts NC
- 0
- Terminal Type
- Screw Terminals
- Connecting Capacity Control Circuit
- Flexible with Ferrule 0.75 ... 2.5 mm2; Rigid Solid 1 ... 2.5 mm2; UL/CSA Rigid Solid 18-14 AWG; UL/CSA Rigid Stranded 18-14 AWG
- Degree of Protection
- Coil Terminals IP20, Main Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529
- Resistance to Shock
- Closed 25 g, Open 5 g, Shock directions A 30 g, B1 25 g and 5 g, B2 15 g, C1 25 g, C2 25 g acc. to IEC 60068-2-27
- Maximum Operating Altitude
- 3000 m without derating
- Maximum Electrical Switching Frequency
- 600 cycles/hr (AC-1), 150 cycles/hr (AC-2/AC-4), 1200 cycles/hr (AC-3)
- RoHS Compliance
- Following EU Directive 2011/65/EU
Rated Operational Current AC-3 (Ie)(415 V) 38 A, (440 V) 38 A, (500 V) 33 A, (690 V) 24 A, (380/400 V) 38 A, (220/230/240 V) 40 A
Rated Operational Current AC-1 (Ie)(690 V) 50 A at 40 C, 42 A at 60 C, 37 A at 70 C
Motor Power18.5 kW / 400 V AC, 25 hp / 480 V UL
Poles3
Rated Operational VoltageMain Circuit 690 V IEC, 600 V UL
Rated FrequencyControl Circuit and Main Circuit 50 / 60 Hz
Rated Short-time Withstand Current (Icw)700 A for 1 s, 350 A for 10 s, 225 A for 30 s, 150 A for 1 min, 50 A for 15 min at 40 C ambient
Number of Main Contacts NO3
Number of Auxiliary Contacts NO0
Mounting2 x M4 screws placed diagonally; DIN Rail TH35-15 and TH35-7.5 acc. to IEC 60715
Connecting Capacity Main CircuitFlexible with Ferrule 0.75 ... 10 mm2; Rigid Solid 2.5 ... 4 mm2; Rigid Stranded 2.5 ... 10 mm2; UL/CSA Rigid Solid 14-10 AWG; UL/CSA Rigid Stranded 14-8 AWG
Tightening Torque UL/CSAControl Circuit 11 in lb, Main Circuit 22 in lb
Resistance to Vibrations5-300 Hz, 4 g closed position, 2 g open position acc. to IEC 60068-2-6
Ambient Air Temperature-25 to 60 C with thermal O/L relay; -40 to 70 C without; Storage -60 to +80 C
Maximum Mechanical Switching Frequency3600 cycles per hour
Material / ConstructionNot specified
StandardsIEC 60947-1/4-1, EN 60947-1/4-16, UL 60947-4-1, CSA C22.2 No. 60947-4-1
