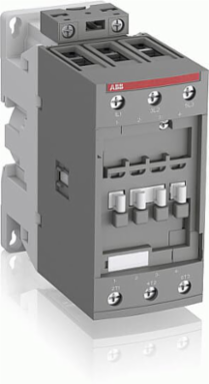

ABB AF52-30-00-41 3 Pole Contactor, 24-60V, 690V AC, 100A Switching Capacity
- MPN: AF52-30-00-41
- UPC: 888614000810
- PPN: ABB-AF52-30-00-41
- UNSPSC: 39121529
CAD
$625.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The AF52-30-00-41 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL and switching power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Additional
- Voltage Rating
- 690 V IEC, 600 V UL
- Rated Operational Current AC-3 (Ie)
- (380-440 V) 53 A, (500 V) 45 A, (690 V) 35 A, (220-240 V) 53 A
- Rated Control Circuit Voltage (Uc)
- 24-60 V, 50/60 Hz
- Number of Main Contacts NO
- 3
- Number of Auxiliary Contacts NO
- 0
- Rated Operational Voltage
- 690 V Main Circuit
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Maximum Electrical Switching Frequency
- (AC-1) 600 cycles/h, (AC-2/AC-4) 150 cycles/h, (AC-3) 1200 cycles/h
- Maximum Breaking Capacity
- 950 A at 440 V, 600 A at 690 V
- Control Circuit Frequency
- 50 / 60 Hz
- Main Circuit Wire Stripping Length
- 16 mm
- Connecting Capacity Main Circuit
- Flexible ferrule: 4-35 mm2; Rigid stranded: 6-35 mm2
- Connecting Capacity Main Circuit UL/CSA
- Rigid Stranded 10-2 AWG
- Mounting Type
- By screws 2x M4 or 2x M6 diagonally, or DIN Rail TH35-15/TH35-7.5 acc. IEC 60715
- Product Net Weight
- 0.97 kg
- Resistance to Vibrations
- 5-300 Hz, 3 g closed/open position acc. IEC 60068-2-6
- Ambient Air Temperature
- -40 to 70 C operating, -60 to +80 C storage
- Standards
- IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1/4-1:22
- Climatic Withstand
- Category B acc. IEC 60947-1 Annex Q
- Country of Origin
- Finland (E-Number 3707013)
Rated Operational Power AC-3 (Pe)(400 V) 22 kW, (415-690 V) 30 kW, (220-240 V) 15 kW
Switching Current100 A AC-1, 80 A UL general use
Number of Poles3
Number of Main Contacts NC0
Number of Auxiliary Contacts NC0
Rated Operational Current DC-1 (Ie)Up to 100 A at 40 C for multiple voltages and poles
Rated Insulation Voltage (Ui)690 V IEC, 600 V UL/CSA
Maximum Mechanical Switching Frequency3600 cycles per hour
Conventional Free-air Thermal Current (Ith)105 A at 40 C
Control Circuit Wire Stripping Length10 mm
Terminal TypeScrew Terminals
Connecting Capacity Control CircuitFlexible ferrule: 0.75-2.5 mm2; Rigid solid/stranded: 1-2.5 mm2
Connecting Capacity Control Circuit UL/CSARigid Solid and Stranded 18-14 AWG
Product Dimensions (WxHxD)55 mm x 125.5 mm x 111 mm
Degree of ProtectionCoil Terminals IP20, Main Terminals IP10 acc. IEC 60529
Resistance to ShockUp to 25 g closed position, 15 g B2, 5 g open position acc. IEC 60068-2-27
Surge ProtectionBuilt-in
RoHS ComplianceEU Directive 2011/65/EU compliant
Maximum Operating Altitude3000 m without derating
