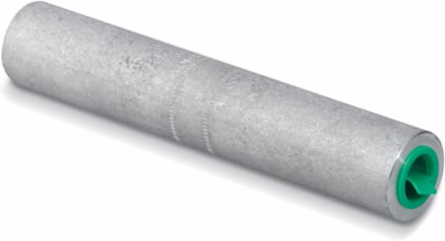

Blackburn AC 500 R 400 TN Tin Plated Aluminum Compression Reducer 500-400 KCMIL 8-7/8 Inch
- MPN: AC 500 R 400 TN
- UPC: 783786691838
- PPN: T-B-AC 500 R 400 TN
- UNSPSC: 39121449
CAD
$134.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin-Plated Aluminum Compression Reducer for Aluminum and Copper, 500 to 400 KCMIL Length 8.593 inch, Diameter 1.325 inch. Bore Depth 4.172 inch. Dies 106, 300, 317,, 15A. 477-500 kcmil, 600 Compact AL-CU, 397/5 (26/7), 477 (18/1) ACSR. 397.5-400 kcmil AL-CU, 336.4 (26/7), 397.5 (18/1) ACSR. Length 8-19/32 inch. Outside Diameter 1-21/64 inch, Oil Stop, Oxide Inhibitor, (1) 500 Pink Cap, (1) 400 Green Cap.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4669 >> Wire or cable compression splice |
|---|
Additional Information
| Application | Reducing Cable Splice |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Type | Compression Splice Reducer |
| Special Functions | Dual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound. Solid Center Stop ensures porper Cable insertion. |
| Surface Finishing | Tin Plated |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Product Name | ELECTRICAL SPLICE<1000V |
| Size | 8-7/8 inch |
| Standards | ANSI C119.4 |
