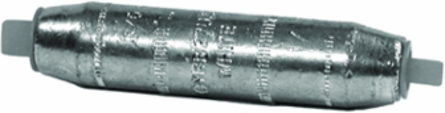

Burndy YRB31U27 Aluminum Reducer, 4.21 Inch Length, 1.11 Inch OD, 35 kV Rating, Tin Plated
- MPN: YRB31U27
- UPC: 781810147559
- PPN: BUR-25005439
CAD
$107.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Electro tin plated reducer
Documentation & Downloads
Specifications
Additional
| Voltage | 35 kV (Maximum 35000 V) |
|---|---|
| Length | 4.21 in (Overall Length) |
| Dimension - B Length | 1.73 in (1-3/4 in) |
| Conductor - Copper Strand Size | 350 (B Range 3/0) |
| Material | Aluminum |
| Connector Type | Reducer |
| Certification - UL Listed | Yes |
| RoHS Compliance | CM |
| Trade Name | HYREDUCER1 |
| Temperature Rating | 194 6F |
|---|---|
| Outer Diameter | 1.11 in (Outside Diameter) |
| Dimension - Strip Length | 1-13/16 in |
| Conductor - Aluminum Strand Size | 350 (A Range 350, B Range 3/0) |
| Plating | Tin - Electro Plated |
| Barrel Style | Chamfered |
| Industry Standards | UL468A-468B |
| Color Code | Brown |
