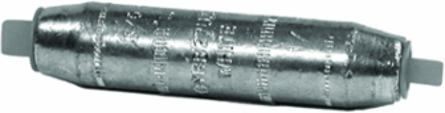

Burndy YRB29U28 Aluminum Electro Tin Plated Reducer, 1.11 Inch OD, 4/0 AWG, 35 kV Rating
- MPN: YRB29U28
- UPC: 781810084878
- PPN: BUR-252097
CAD
$103.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Electro tin plated reducer; UL Listed;RatingKVA 35 KV
Documentation & Downloads
Specifications
Additional
| Voltage Rating | 35 kV |
|---|---|
| Size | 1.11 in. OD |
| Temperature Rating | 194 F |
| Standards | UL468A-468B, RoHS CM |
| Dimension B Length | 1.73 in. (1-3/4 in.) |
| Conductor Copper Size | 250 kcmil (Size B: 4/0 AWG) |
| Die Index | 299 |
| Barrel Style | Chamfered |
| Color Code | Brown |
| Wire Size | 4/0 AWG |
|---|---|
| Material | Aluminum, Tin Electro-Plated |
| Certification | UL Listed, Not CSA Approved |
| Length Overall | 4.21 in. (107 mm) |
| Strip Length | 1-13/16 in. |
| Conductor Aluminum Size | 250 kcmil (Size B: 4/0 AWG) |
| Connector Type | Reducer |
| Plating Type | Tin - Electro Plated |
