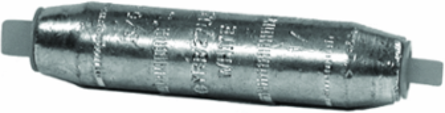

Burndy YRB27U26 Aluminum Reducer, 3/0 AWG, 3.31 Inch Length, 35 kV Rating, Tin Plated
- MPN: YRB27U26
- UPC: 781810739235
- PPN: BUR-252358
CAD
$173.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Electro tin plated reducer; UL Listed;RatingKVA 35 KV
Documentation & Downloads
Specifications
Additional
| Voltage Rating | 35 kV |
|---|---|
| Temperature Rating | 194 F |
| Conductor Aluminum Strand Size B | 2/0 AWG |
| Conductor Copper Strand Size B | 2/0 AWG |
| Dimension B Length | 1.36 in |
| Strip Length | 1.44 in |
| Plated | Yes |
| Certification UL Listed | Yes |
| RoHS Compliance Status | CM |
| Feature Barrel Style | Chamfered |
| Trade Name | HYREDUCERTM |
| Voltage Maximum | 35000 V |
|---|---|
| Conductor Aluminum Strand Size A | 3/0 AWG |
| Conductor Copper Strand Size A | 3/0 AWG |
| Length | 3.31 in |
| Outside Diameter | 0.85 in |
| Material | Aluminum, Tin Electroplated |
| Connector Type | Reducer |
| Industry Standards | UL468A-468B |
| Number of Crimps Required | 2 |
| Color Code | White |
