Blackburn

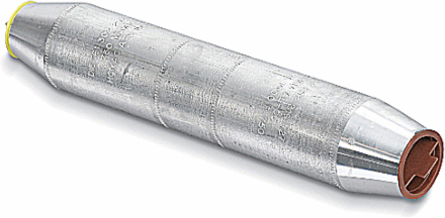

Blackburn ATC 750 R 500 Aluminum Tapered Reducing Splices, 500-750 Wire Size, 9-7/8 Inch Length

Aluminum Tapered Reducing Splices, 500-750 Wire Size, 9-7/8 Inch Length
  • MPN: ATC 750 R 500
  • PPN: T-B-ATC 750 R 500

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$194.76/ EA

Description

Aluminum Tapered Reducing Splices, wire size 500-750, 9-7/8 inch long

Features

  • Solid Center Stop Ensures Proper Cable Insertion, Prevents Moisture Migration.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
  • All Splices Marked with Conductor Sizes and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121449 Wire or cable compression splice
Brand Name
Blackburn
Special Features
Dual-Rated. Use with aluminum and copper conductors. Solid Center Stop assures proper cable insertion, prevents moisture migration. Conductor bores coated with oxide inhibitor to prevent oxidation. All Splices marked with Die References for Easy Identification.
Standard
ANSI C119.4
Connection
Compression/Crimp
Number Of Conductors
2
Finish
Bare
IGCC4669 Wire or cable compression splice
TypeAluminum Tapered Reducing Splices
ApplicationTapered ends enable use in High-Voltage Applications up to 69kV.
SizeLength 9-7/8 inches
Conductor Range750-500
MaterialAluminum
InsulationNone

Packaging

Outer Quantity
20
Weight Uom
1.36 lbs. Each
Outer Dimensions (inches)8.25x7.875x13.375
