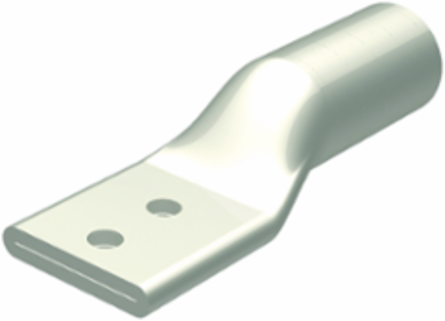

Burndy YA46A3 Aluminum Compression Terminal, 1500 kcmil, 1/2 Inch Stud, 2 Hole Design
- MPN: YA46A3
- UPC: 781810754153
- PPN: BUR-537417
CAD
$938.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90° C600 Volts to 35 KV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3-5/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 3.15 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 8.73 in
- Dimension - Outside Diameter inch
- 2.26 in
- Dimension - Strip Length inch
- 2 3/4
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch3.30 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm222 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch3.08 in
Dimension - Stud Size inch1/2
Dimension - Z inch0.77 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 1500 kcmil
- Conductor - Copper Str Size
- 1500 kcmil
Conductor - AL Str Size Range1500 kcmil
Conductor - Copper Str Size Range1500 kcmil
General
- Color Code
- Blue
- Die Index
- 478
- Feature - Barrel Type
- Standard
- Material
- Aluminum
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC 12 Digit
- 7818107541533
Connector TypeTerminal
Feature - Barrel StyleChamfered
Item Type3C
Physical Attribute - Number of Holes2
PlatedY
Temperature Rating194
UPC781810754153
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
