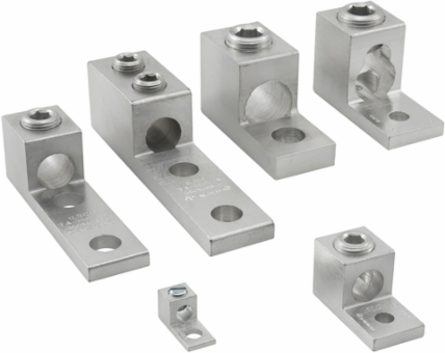

Ilsco TA-0 Aluminum Mechanical Lug, Conductor Range 1/0-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
Ilsco TA-0 Aluminum Mechanical Lug, Conductor Range 1/0-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
- MPN: TA-0
- UPC: 0783669887150
- PPN: ILC-TA-0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$3.78/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.422
- Height BX (IN)
- 2
- Length (mm)
- 37.3126
- Mounting Hole Diameter (mm)
- 6.731
- Tang Length (IN)
- 0.844
- Tang Thickness (IN)
- 0.187
- Tang Width (IN)
- 0.623
- Weight BX (LB)
- 2.412
- Width (mm)
- 15.8242
Drive Type MainSlotted
Height (mm)20.1676
Mounting Hole Diameter (IN)0.265
Mounting Hole Spacing (mm)0
Tang Length (mm)21.4376
Tang Thickness (mm)4.7498
Tang Width (mm)15.8242
Width BX (IN)6.1875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Number of Ports / Wireways
- 1
Contains DE-OX®No
Number of Conductors1, 2
Number of Poles1
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Wire Combinations
- (2) 10 Sol - 12 Sol AL & CU, (2) 4 Str - 12 Str AL & CU
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedYes
UPC Code78366988715
Specifications
- Height
- 0.794 in | 20.1676 mm
- Weight
- 0.157 lbs
Length1.469 in | 37.3126 mm
Width0.623 in | 15.8242 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
- Wire Binding Screw Size
- 3/8
Number of Wire Binding Screws per Port1
Wire Binding Torque4 - 6 AWG = 45, 8 AWG = 40, 10 - 14 AWG = 35, 2/0 - 2 AWG = 50
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
