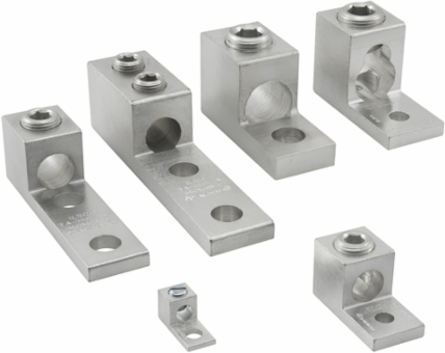

ILSCO TA-2/0 Aluminum Mechanical Lug, Conductor Range 2/0-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
- MPN: TA-2/0
- UPC: 783669177497
- PPN: ILC-TA-2/0
CAD
$4.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Mechanical Lug, Conductor Range 2/0-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.794 in |
|---|---|
| Weight | 0.032 lbs |
| Length | 1.469 in | 37.3126 mm |
|---|---|
| Width | 0.623 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 0.422 |
|---|---|
| Drive Size Main | 3/16 |
| Height BX (IN) | 2 |
| Mounting Hole Diameter (IN) | 0.272 |
| Mounting Hole Spacing (mm) | 0 |
| Tang Length (mm) | 21.4376 |
| Tang Thickness (mm) | 4.7498 |
| Tang Width (mm) | 15.8242 |
| Width BX (IN) | 6.1875 |
| Dimension G (mm) | 10.7188 |
|---|---|
| Drive Type Main | Internal Hex |
| Length (mm) | 37.3126 |
| Mounting Hole Diameter (mm) | 6.9088 |
| Tang Length (IN) | 0.844 |
| Tang Thickness (IN) | 0.187 |
| Tang Width (IN) | 0.623 |
| Weight BX (LB) | 1.753 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 467 Listed, UL 486A/B Listed |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 1 |
| Contains DE-OX® | No |
|---|---|
| Number of Conductors | 1 |
| Number of Poles | 1 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Tin |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 2/0 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 2/0 Str - 14 Str |
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 50 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366917749 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/4 |
|---|---|
| Wire Binding Screw Size | 7/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 120 |
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
