ILSCO TA-350-I Aluminum Mechanical Lug, Conductor Range 350-6, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA

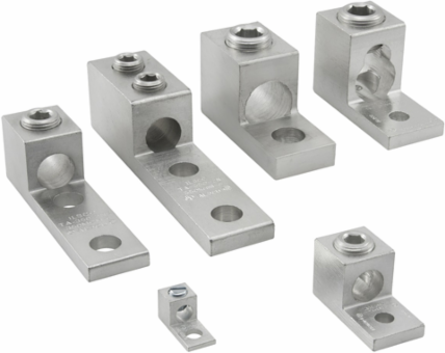

Aluminum Mechanical Lug, Conductor Range 350-6, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA
  • MPN: TA-350-I
  • UPC: 783669715507
  • PPN: ILC-TA-350-I
  • UNSPSC: 39121408

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$12.23/ EA

Description

ILSCO Canada Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 3/8 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Silver, 1 poles,

Specifications

Specifications

Type
Item
ItemUPCCode
78366971550
ItemCatalogIndicator
C
ItemConductorRangeCUStrandedPrimaryrunmainline
350 kcmil - 6 Str
ItemConductorRangeALStrandedPrimaryrunmainline
350 kcmil - 6 Str
ItemDriveSizeMain
5/16
ItemMountingBoltStudSize
3/8
ItemWireBindingScrewSize
11/16
ItemWireBindingTorque
275
ItemLengthmm
53.975
ItemWidthmm
25.4
ItemHeightmm
28.575
ItemDimensionGetc
0.5
ItemMountingBoltStudSizemm
965.2
ItemMountingHoleDiametermm
10.3124
ItemTangLength
1.34
ItemTangThickness
0.293
ItemTangWidth
1
ItemMaterial
Aluminum
ItemConnectorFinish
Tin
ItemWireBindingHardwareFinish
Tin
ItemTemperatureRating
90°C
ItemCSAFileNumber
LR-5465
ItemULControlNumber
18H3
ItemConnection
Mechanical
ItemMountingHoleType
Thru
ItemNumberofMountingHoles
1
ItemNumberofPortsWireways
1
ItemBagQuantity
1
ItemStatusReady
ItemUNSPSCCode39121408
ItemDualRatedTrue
ItemConductorSizeCUPrimaryrunmainline350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
ItemConductorSizeALPrimaryrunmainline350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
ItemDriveTypeMainInternal Hex
ItemNumberofWireBindingScrewsperPort1
ItemWireBindingScrewSizemm28346.4
ItemLength2.125
ItemWidth1
ItemHeight1.125
ItemWeight0.0864800142897811
ItemDimensionGmm12.7
ItemMountingHoleDiameter0.406
ItemMountingHoleSpacingmm0
ItemTangLengthmm34.036
ItemTangThicknessmm7.4422
ItemTangWidthmm25.4
ItemConductorMaterialCopper,Aluminum
ItemWireBindingHardwareMaterialAluminum
ItemColorSilver
ItemVoltageRating600 V
ItemCSAStandardC22.2 No. 65,C22.2 No. 188
ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ItemConductorTypeStranded
ItemNumberofConductors1
ItemNumberofPoles1
ItemNumberofPortsMain1
