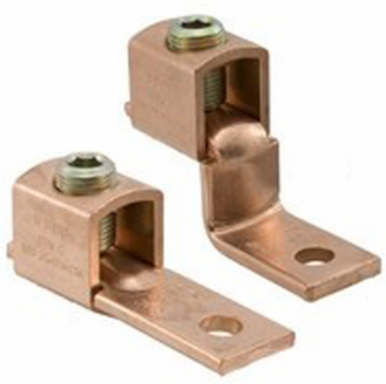

Ilsco SLU-125 Copper Mechanical Lug Offset, Conductor Range 1/0-6, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
Ilsco SLU-125 Copper Mechanical Lug Offset, Conductor Range 1/0-6, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
- MPN: SLU-125
- UPC: 0783669831641
- PPN: ILC-SLU-125
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.13/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.439
- Drive Type Main
- Slotted
- Height (mm)
- 31.8262
- Mounting Hole Diameter (mm)
- 6.731
- Tang Length (mm)
- 20.6502
- Tang Offset (mm)
- 14.8336
- Tang Thickness (mm)
- 3.175
- Tang Width (mm)
- 15.875
- Width BX (IN)
- 6.1875
Dimension G (mm)11.1506
Height BX (IN)2
Mounting Hole Diameter (IN)0.265
Tang Length (IN)0.813
Tang Offset (IN)0.584
Tang Thickness (IN)0.125
Tang Width (IN)0.625
Weight BX (LB)5.927
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Collar Style
- V-Bottom
- Contains DE-OX®
- No
- Number of Conductors
- 1
- Number of Poles
- 1
ConnectionMechanical
Mounting Hole TypeThru
Number of Mounting Holes1
Number of Ports / Wireways1
Material and Finish
- Conductor Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
MaterialCopper
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366983164
Specifications
- Height
- 1.253 in | 31.8262 mm
- Weight
- 0.114 lbs
Length1.969 in
Width0.625 in
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
- Wire Binding Screw Size
- 3/8
Number of Wire Binding Screws per Port1
Wire Binding Torque1/0 - 2 AWG = 50, 4 - 6 AWG = 45
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
