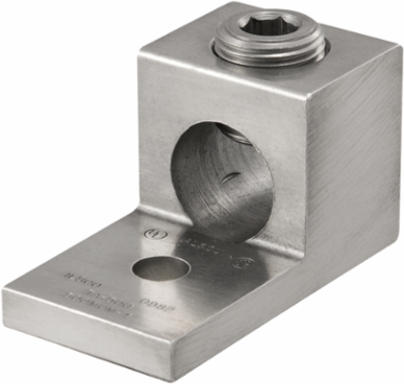

ILSCO TA-500-I Aluminum Mechanical Lug, Conductor Range 500-4, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA
- MPN: TA-500-I
- UPC: 783669715521
- PPN: ILC-TA-500-I
- UNSPSC: 39121408
CAD
$26.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Canada Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 3/8 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 600 V, primary color Silver, 1 poles,
Specifications
Key Specifications
| Type | Resource |
|---|---|
| ItemUPCCode | 78366971552 |
| ItemCatalogIndicator | C |
| ItemConductorRangeCUStrandedPrimaryrunmainline | 500 kcmil - 4 Str |
| ItemConductorRangeALStrandedPrimaryrunmainline | 500 kcmil - 4 Str |
| ItemDriveSizeMain | 3/8 |
| ItemMountingBoltStudSize | 3/8 |
| ItemWireBindingScrewSize | 13/16 |
| ItemWireBindingTorque | 375 |
| ItemLengthmm | 60.325 |
| ItemWidthmm | 30.48 |
| ItemHeightmm | 34.925 |
| ItemDimensionGetc | 0.625 |
| ItemMountingBoltStudSizemm | 965.2 |
| ItemMountingHoleDiametermm | 10.3124 |
| ItemTangLength | 1.526 |
| ItemTangThickness | 0.312 |
| ItemTangWidth | 1.2 |
| ItemMaterial | Aluminum |
| ItemConnectorFinish | Tin |
| ItemWireBindingHardwareFinish | Tin |
| ItemTemperatureRating | 90°C |
| ItemCSAFileNumber | LR-5465 |
| ItemULControlNumber | 18H3 |
| ItemConnection | Mechanical |
| ItemMountingHoleType | Thru |
| ItemNumberofMountingHoles | 1 |
| ItemNumberofPortsWireways | 1 |
| ItemBagQuantity | 1 |
| ItemStatus | Ready |
|---|---|
| ItemUNSPSCCode | 39121408 |
| ItemDualRated | True |
| ItemConductorSizeCUPrimaryrunmainline | 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str |
| ItemConductorSizeALPrimaryrunmainline | 500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str |
| ItemDriveTypeMain | Internal Hex |
| ItemNumberofWireBindingScrewsperPort | 1 |
| ItemWireBindingScrewSizemm | 33426.4 |
| ItemLength | 2.375 |
| ItemWidth | 1.2 |
| ItemHeight | 1.375 |
| ItemWeight | 0.16098524826397 |
| ItemDimensionGmm | 15.875 |
| ItemMountingHoleDiameter | 0.406 |
| ItemMountingHoleSpacingmm | 0 |
| ItemTangLengthmm | 38.7604 |
| ItemTangThicknessmm | 7.9248 |
| ItemTangWidthmm | 30.48 |
| ItemConductorMaterial | Copper,Aluminum |
| ItemWireBindingHardwareMaterial | Aluminum |
| ItemColor | Silver |
| ItemVoltageRating | 600 V |
| ItemCSAStandard | C22.2 No. 65,C22.2 No. 188 |
| ItemProp65 | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| ItemConductorType | Stranded |
| ItemNumberofConductors | 1 |
| ItemNumberofPoles | 1 |
| ItemNumberofPortsMain | 1 |
