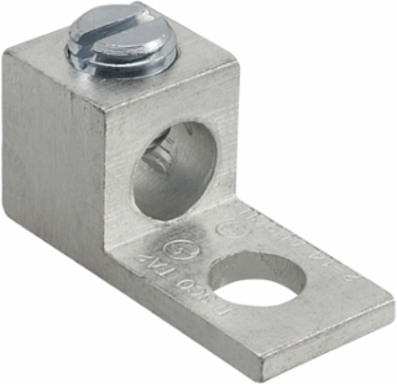

ILSCO TA-2 Aluminum Mechanical Lug, Conductor Range 2-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
- MPN: TA-2
- UPC: 783669887747
- PPN: ILC-TA-2
CAD
$2.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Mechanical Lug, Conductor Range 2-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.55 in | 13.97 mm
- Weight
- 0.047 lbs
Length1.156 in | 29.3624 mm
Width0.5 in | 12.7 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.313
- Height BX (IN)
- 2
- Length (mm)
- 29.3624
- Mounting Hole Spacing (mm)
- 0
- Tang Thickness (IN)
- 0.1
- Weight BX (LB)
- 1.827
- Width (mm)
- 12.7
Drive Type MainSlotted
Height (mm)13.97
Mounting Hole Diameter (IN)0.266
Tang Length (IN)0.687
Tang Width (IN)0.5
Width BX (IN)6.1875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 1, 2
- Number of Poles
- 1
Mounting Hole TypeThru
Number of Mounting Holes1
Number of Ports / Wireways1
Material and Finish
- Connector Finish
- Tin
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
MaterialAluminum
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 2 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str - 14 Str
- Wire Combinations
- (2) 10 Sol - 14 Sol CU, (2) 10 Str - 12 Str AL, (2) 10 Sol - 12 Sol AL, (2) 10 Str - 14 Str CU
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366988774
Carton Quantity DescriptionSTD PACK QTY 100
NEMA CodeS-588-3
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
- Wire Binding Screw Size
- 5/16
Number of Wire Binding Screws per Port1
Wire Binding Torque10 - 14 AWG = 35, 2/0 - 2 AWG = 50, 4 - 6 AWG = 45, 8 AWG = 40
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
