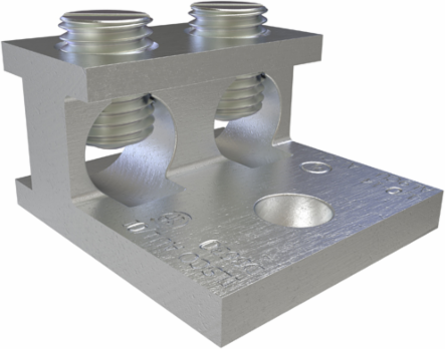

Ilsco AU-1/0-I Aluminum Mechanical Lug, Conductor Range 1/0-14, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, CSA

MPN: AU-1/0-I
UPC: 783669715262
PPN: ILC-AU-1/0-I
UNSPSC: 39121408

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$8.28/ EA

Qty:

Loading add to cart quantity...

Description

ILSCO Canada Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, 2 conductors, 2 ports/wireways, Drive Type Main Slotted, rated for 600 V, primary color Silver, 1 poles,

Specifications

Type: Resource

ItemUPCCode: 78366971526

ItemCatalogIndicator: C

ItemConductorRangeCUStrandedPrimaryrunmainline: 1/0 Str - 14 Str

ItemConductorSizeCUPrimaryrunmainline: 14 Str,14 Sol,12 Str,12 Sol,10 Str,10 Sol,8 Str,7 Str,6 Str,5 Str,4 Str,3 Str,2 Str,1 Str,1/0 Str

ItemConductorRangeSolidPrimaryrunmainline: 10 Sol - 14 Sol

ItemDriveTypeMain: Slotted

ItemNumberofWireBindingScrewsperPort: 1

ItemWireBindingTorque: 10 - 14 AWG = 35,2/0 - 2 AWG = 50,4 - 6 AWG = 45,8 AWG = 40

ItemLengthmm: 31.115

ItemWidthmm: 28.575

ItemHeightmm: 16.7132

ItemDimensionGetc: 0.25

ItemMountingHoleDiameter: 0.265

ItemTangLength: 0.775

ItemTangThickness: 0.156

ItemTangWidth: 1.125

ItemMaterial: Aluminum

ItemConnectorFinish: Tin

ItemWireBindingHardwareFinish: Tin

ItemTemperatureRating: 90°C

ItemCSAFileNumber: LR-5465

ItemULControlNumber: 18H3

ItemConnection: Mechanical

ItemContainsDEOX: False

ItemNumberofConductors: 2

ItemNumberofPoles: 1

ItemNumberofPortsMain: 2

ItemStatusReady

ItemUNSPSCCode39121408

ItemDualRatedTrue

ItemConductorRangeCUSolidPrimaryrunmainline10 Sol - 14 Sol

ItemConductorRangeALStrandedPrimaryrunmainline1/0 Str - 14 Str

ItemConductorSizeALPrimaryrunmainline14 Str,14 Sol,12 Str,12 Sol,10 Str,10 Sol,8 Str,7 Str,6 Str,5 Str,4 Str,3 Str,2 Str,1 Str,1/0 Str

ItemMountingBoltStudSize1/4

ItemWireBindingScrewSize3/8

ItemLength1.225

ItemWidth1.125

ItemHeight0.658

ItemWeight0.051337340670166

ItemDimensionGmm6.35

ItemMountingHoleDiametermm6.731

ItemTangLengthmm19.685

ItemTangThicknessmm3.9624

ItemTangWidthmm28.575

ItemConductorMaterialCopper,Aluminum

ItemWireBindingHardwareMaterialAluminum

ItemColorSilver

ItemVoltageRating600 V

ItemCSAStandardC22.2 No. 65,C22.2 No. 188

ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

ItemConductorTypeSolid,Stranded

ItemMountingHoleTypeThru

ItemNumberofMountingHoles1

ItemNumberofPortsWireways2

ItemBagQuantity1
