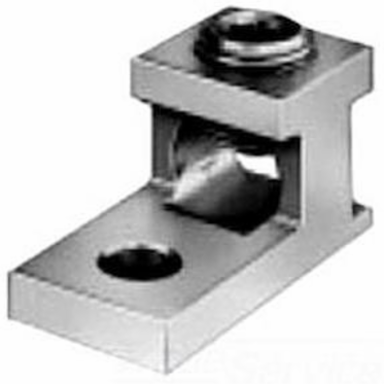

ILSCO TA-2-I Aluminum Mechanical Lug, Conductor Range 2-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
ILSCO TA-2-I Aluminum Mechanical Lug, Conductor Range 2-14, 1 Port, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA
- MPN: TA-2-I
- UPC: 783669715422
- PPN: ILC-TA-2-I
- UNSPSC: 39121408
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.38/ EA
Description
ILSCO Canada Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 2 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 600 V, primary color Silver, 1 poles,
Specifications
Specifications
- Type
- Resource
- ItemUPCCode
- 78366971542
- ItemCatalogIndicator
- C
- ItemConductorRangeCUStrandedPrimaryrunmainline
- 2 Str - 14 Str
- ItemConductorSizeCUPrimaryrunmainline
- 10 Sol,12 Sol,14 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
- ItemConductorRangeSolidPrimaryrunmainline
- 10 Sol - 14 Sol
- ItemDriveTypeMain
- Slotted
- ItemNumberofWireBindingScrewsperPort
- 1
- ItemWireBindingTorque
- 10 - 14 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2/0 - 2 AWG = 50
- ItemLengthmm
- 27.686
- ItemWidthmm
- 12.7
- ItemWeight
- 0.0167433095460169
- ItemDimensionGmm
- 6.35
- ItemMountingHoleDiametermm
- 6.731
- ItemTangLength
- 0.762
- ItemTangThickness
- 0.094
- ItemTangWidth
- 0.5
- ItemMaterial
- Aluminum
- ItemConnectorFinish
- Tin
- ItemWireBindingHardwareFinish
- Zinc Clear Trivalent Chromate
- ItemTemperatureRating
- 90°C
- ItemCSAFileNumber
- LR-5465
- ItemULControlNumber
- 18H3
- ItemConnection
- Mechanical
- ItemMountingHoleType
- Thru
- ItemNumberofMountingHoles
- 1
- ItemNumberofPortsWireways
- 1
- ItemBagQuantity
- 1
ItemStatusReady
ItemUNSPSCCode39121408
ItemDualRatedTrue
ItemConductorRangeCUSolidPrimaryrunmainline10 Sol - 14 Sol
ItemConductorRangeALStrandedPrimaryrunmainline2 Str - 14 Str
ItemConductorSizeALPrimaryrunmainline10 Sol,12 Sol,14 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
ItemMountingBoltStudSize1/4
ItemWireBindingScrewSize5/16
ItemLength1.09
ItemWidth0.5
ItemHeightmm15.24
ItemDimensionGetc0.25
ItemMountingHoleDiameter0.265
ItemMountingHoleSpacingmm0
ItemTangLengthmm19.3548
ItemTangThicknessmm2.3876
ItemTangWidthmm12.7
ItemConductorMaterialCopper,Aluminum
ItemWireBindingHardwareMaterialSteel
ItemColorSilver
ItemVoltageRating600 V
ItemCSAStandardC22.2 No. 65,C22.2 No. 188
ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ItemConductorTypeSolid,Stranded
ItemNumberofConductors1
ItemNumberofPoles1
ItemNumberofPortsMain1
