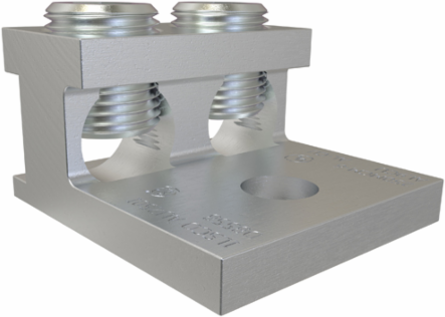

ILSCO AU-250-I Aluminum Mechanical Lug, Conductor Range 250-6, 2 Ports, 1 Hole, 3/8in Bolt Size, Tin Plated, CSA

Aluminum Mechanical Lug, Conductor Range 250-6, 2 Ports, 1 Hole, 3/8in Bolt Size, Tin Plated, CSA
  • MPN: AU-250-I
  • UPC: 783669715309
  • PPN: ILC-AU-250-I
  • UNSPSC: 39121408

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.54/ EA

Description

ILSCO Canada Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 3/8 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 2 conductors, 2 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Silver, 1 poles,

Specifications

Specifications

Type
Item
ItemUPCCode
78366971530
ItemCatalogIndicator
C
ItemConductorRangeCUStrandedPrimaryrunmainline
250 kcmil - 6 Str
ItemConductorRangeALStrandedPrimaryrunmainline
250 kcmil - 6 Str
ItemDriveSizeMain
5/16
ItemMountingBoltStudSize
3/8
ItemWireBindingScrewSize
5/8
ItemLength
1.875
ItemWidth
1.648
ItemHeight
1
ItemWeight
0.113886122924627
ItemDimensionGmm
11.938
ItemMountingHoleDiametermm
10.3124
ItemTangLengthmm
30.1752
ItemTangThicknessmm
6.35
ItemTangWidthmm
41.8592
ItemConductorMaterial
Copper,Aluminum
ItemWireBindingHardwareMaterial
Aluminum
ItemColor
Silver
ItemVoltageRating
600 V
ItemCSAStandard
C22.2 No. 65,C22.2 No. 188
ItemProp65
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ItemConductorType
Stranded
ItemMountingHoleType
Thru
ItemNumberofMountingHoles
1
ItemNumberofPortsWireways
2
ItemBagQuantity
1
ItemStatusReady
ItemUNSPSCCode39121408
ItemDualRatedTrue
ItemConductorSizeCUPrimaryrunmainline250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
ItemConductorSizeALPrimaryrunmainline250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
ItemDriveTypeMainInternal Hex
ItemNumberofWireBindingScrewsperPort1
ItemWireBindingTorque275
ItemLengthmm47.625
ItemWidthmm41.8592
ItemHeightmm25.4
ItemDimensionGetc0.47
ItemMountingHoleDiameter0.406
ItemTangLength1.188
ItemTangThickness0.25
ItemTangWidth1.648
ItemMaterialAluminum
ItemConnectorFinishTin
ItemWireBindingHardwareFinishTin
ItemTemperatureRating90°C
ItemCSAFileNumberLR-5465
ItemULControlNumber18H3
ItemConnectionMechanical
ItemContainsDEOXFalse
ItemNumberofConductors2
ItemNumberofPoles1
ItemNumberofPortsMain2
