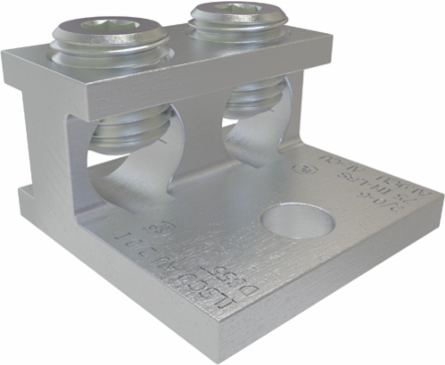

Ilsco AU-2/0-I Aluminum Mechanical Lug, Conductor Range 2/0-6, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, CSA

MPN: AU-2/0-I
UPC: 783669715286
PPN: ILC-AU-2/0-I
UNSPSC: 39121408

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$8.43/ EA

Qty:

Loading add to cart quantity...

Description

ILSCO Canada Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 2/0 Str - 6 Str, 2 conductors, 2 ports/wireways, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Silver, 1 poles,

Specifications

Type: Item

ItemUPCCode: 78366971528

ItemCatalogIndicator: C

ItemConductorRangeCUStrandedPrimaryrunmainline: 2/0 Str - 6 Str

ItemConductorRangeALStrandedPrimaryrunmainline: 2/0 Str - 6 Str

ItemDriveSizeMain: 3/16

ItemMountingBoltStudSize: 1/4

ItemWireBindingScrewSize: 7/16

ItemLength: 1.225

ItemWidth: 1.25

ItemHeight: 0.7

ItemWeight: 0.0383629229997511

ItemDimensionGmm: 6.35

ItemMountingHoleDiametermm: 6.731

ItemTangLengthmm: 19.685

ItemTangThicknessmm: 3.9624

ItemTangWidthmm: 31.75

ItemConductorMaterial: Copper,Aluminum

ItemWireBindingHardwareMaterial: Aluminum

ItemColor: Silver

ItemVoltageRating: 600 V

ItemCSAStandard: C22.2 No. 65,C22.2 No. 188

ItemProp65: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

ItemConductorType: Stranded

ItemMountingHoleType: Thru

ItemNumberofMountingHoles: 1

ItemNumberofPortsWireways: 2

ItemBagQuantity: 1

ItemStatusReady

ItemUNSPSCCode39121408

ItemDualRatedTrue

ItemConductorSizeCUPrimaryrunmainline2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str

ItemConductorSizeALPrimaryrunmainline2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str

ItemDriveTypeMainInternal Hex

ItemNumberofWireBindingScrewsperPort1

ItemWireBindingTorque120

ItemLengthmm31.115

ItemWidthmm31.75

ItemHeightmm17.78

ItemDimensionGetc0.25

ItemMountingHoleDiameter0.265

ItemTangLength0.775

ItemTangThickness0.156

ItemTangWidth1.25

ItemMaterialAluminum

ItemConnectorFinishTin

ItemWireBindingHardwareFinishTin

ItemTemperatureRating90°C

ItemCSAFileNumberLR-5465

ItemULControlNumber18H3

ItemConnectionMechanical

ItemContainsDEOXFalse

ItemNumberofConductors2

ItemNumberofPoles1

ItemNumberofPortsMain2
