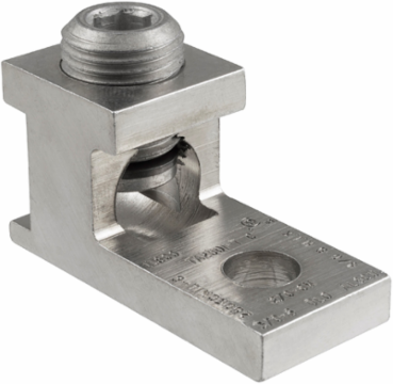

Ilsco TA-250-I Aluminum Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 5/16in Bolt Size, Tin Plated, UL, CSA

MPN: TA-250-I
UPC: 783669715460
PPN: ILC-TA-250-I
UNSPSC: 39121408

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$7.82/ EA

Qty:

Loading add to cart quantity...

Description

ILSCO Canada Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 5/16 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Silver, 1 poles,

Specifications

Type: Item

ItemUPCCode: 78366971546

ItemCatalogIndicator: C

ItemConductorRangeCUStrandedPrimaryrunmainline: 250 kcmil - 6 Str

ItemConductorRangeALStrandedPrimaryrunmainline: 250 kcmil - 6 Str

ItemDriveSizeMain: 5/16

ItemMountingBoltStudSize: 5/16

ItemWireBindingScrewSize: 5/8

ItemLength: 1.875

ItemWidth: 0.875

ItemHeight: 1

ItemWeight: 0.0606476397826942

ItemDimensionGmm: 11.938

ItemMountingHoleDiametermm: 10.3124

ItemTangLength: 1.188

ItemTangThickness: 0.25

ItemTangWidth: 0.875

ItemMaterial: Aluminum

ItemConnectorFinish: Tin

ItemWireBindingHardwareFinish: Tin

ItemTemperatureRating: 90°C

ItemCSAFileNumber: LR-5465

ItemULControlNumber: 18H3

ItemConnection: Mechanical

ItemMountingHoleType: Thru

ItemNumberofMountingHoles: 1

ItemNumberofPortsWireways: 1

ItemBagQuantity: 1

ItemStatusReady

ItemUNSPSCCode39121408

ItemDualRatedTrue

ItemConductorSizeCUPrimaryrunmainline250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str

ItemConductorSizeALPrimaryrunmainline250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str

ItemDriveTypeMainInternal Hex

ItemNumberofWireBindingScrewsperPort1

ItemWireBindingTorque275

ItemLengthmm47.625

ItemWidthmm22.225

ItemHeightmm25.4

ItemDimensionGetc0.47

ItemMountingHoleDiameter0.406

ItemMountingHoleSpacingmm0

ItemTangLengthmm30.1752

ItemTangThicknessmm6.35

ItemTangWidthmm22.225

ItemConductorMaterialCopper,Aluminum

ItemWireBindingHardwareMaterialAluminum

ItemColorSilver

ItemVoltageRating600 V

ItemCSAStandardC22.2 No. 65,C22.2 No. 188

ItemProp65This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

ItemConductorTypeStranded

ItemNumberofConductors1

ItemNumberofPoles1

ItemNumberofPortsMain1
