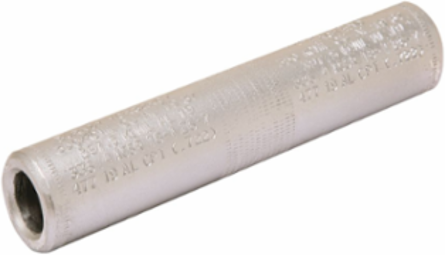

Burndy YCR32RG7 Aluminum Reducer, Designed for joining (i) Cu to Alum. or ACSR (ii) Alum or ACSR to Alum. or ACSR, Barrels Partially filled with PENETROX™ and Sealed
- MPN: YCR32RG7
- UPC: 781810014929
- PPN: BUR-193026
- UNSPSC: 39121405
CAD
$140.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Reducer, Designed for joining (i) Cu to Alum. or ACSR (ii) Alum or ACSR to Alum. or ACSR, Barrels Partially filled with PENETROX™ and Sealed.
Features
- Aluminum Reducer
- Partially filled with PENETROX Oxide Inhibitor and Sealed
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Conductor - ACSR Str Size A Range | 336.4 (18/1) Merlin-336.4 (26/7) Linnet |
| Conductor - ACSR Str Size B Range | 336.4 (18/1) Merlin-336.4 (26/7) Linnet |
| Conductor - AL Str Size A Range | 350 kcmil-397.5 kcmil |
| Conductor - AL Str Size B Range | 350 kcmil-397.5 kcmil |
| Conductor - Copper Str Size A Range | 350 kcmil |
| Conductor - Copper Str Size B Range | 350 kcmil |
| Dimension - L Length Overall mm | 170 mm |
| Dimension - Outside Diameter inch | 1.25 in |
| Plating Type | Unplated |
| Product Type | Compression |
| Trade Name | HYREDUCER™ |
| Connector Type | Reducer |
| Class Code | B30 |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| MSDS Flag | No |
| Stock Indicator | S - Shelf Stock |
| Die Index | 317;705 |
| Material | Aluminum |
| BOX SIZE | 5.125x8.438x4.063 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810014929 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810014920 |
| Package - Total Units | 10 EA |
| Package Weight | 0.000 lb. |
| Pallet Height | 46.750 in |
| Pallet Weight | 2318.600 lb. |
| Standard Package Quantity | 10 |
| Conductor - ACSR Str Size A | 336.4 (18/1) Merlin;336.4 (26/7) Linnet |
|---|---|
| Conductor - ACSR Str Size B | 336.4 (18/1) Merlin;336.4 (26/7) Linnet |
| Conductor - AL Str Size A | 350 kcmil;397.5 kcmil |
| Conductor - AL Str Size B | 350 kcmil;397.5 kcmil |
| Conductor - Copper Str Size A | 350 kcmil |
| Conductor - Copper Str Size B | 350 kcmil |
| Dimension - B Length inch | 3 in |
| Dimension - Length Overall inch | 6.69 in |
| Plated | N |
| Prefilled Oxide Inhibitor | Y |
| Standards - RoHS Compliance Status | CM |
| Conductor Type | ACSR C Str-Size A;AL C Str-Size A;CU C Str-Size A;ACSR C Str-Size B;AL C Str-Size B;CU C Str-Size B |
| ARRA Compliant | Yes |
| Description - Invoice | 350 TO 350 AL/CU RREDUCE |
| Harmonization Code | 8535908020 |
| Lead Time | 12 wk |
| Order Multiple | 10 EA |
| Sub Class Code | B30B44F |
| UL Listed | No |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 5.800 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Package - GTIN - Package | 30781810014920 |
| Package Quantity | 10 EA |
| Pallet - GTIN - Package | 70781810014928 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 3359319104 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| cULus | No |
| UL Recognized | No |
| CSA Approved | No |
|---|---|
| ETL | No |
