Homac

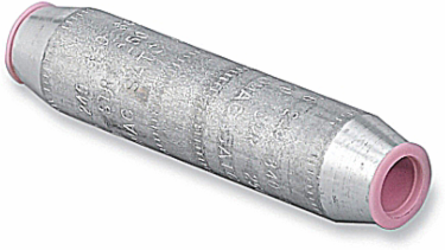

Homac SATC 4/0 R 2/0 Aluminum Reducing Splice

Aluminum Reducing Splice
  • MPN: SATC 4/0 R 2/0
  • PPN: T-B-SATC 4/0 R 2/0

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$157.34/ EA

Description

Aluminum Tpered Compression Splice, 4/0 STR to 2/0 STR, Dual Rated Aluminum and Copper, 50 pieces

Features

  • Solid Center Stop Ensures Proper Cable Insertion, Prevents Moisture Migration.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
  • All Splices Marked with Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121449 Wire or cable compression splice
Brand Name
Homac
Special Features
Marked with Conductor Sizes and Die References. Prefilled with Oxide Inhibiting Compound. Pink and Gray Caps. Tapered Ends.
Connection
Compression/Crimp
Number Of Conductors
2
Finish
Bare
IGCC4669 Wire or cable compression splice
TypeAluminum Reducing Splice
Size4.000 inch long. Outside Diameter .906 inch
Conductor Range4/0 Stranded and Compressed 250 MCM Compact to 2/0 Stranded 3/0 Compact
MaterialAluminum
InsulationNone

Packaging

Outer Quantity
50
Weight Uom
1 lbs. Each
Outer Dimensions (inches)7.75x6.25x7
