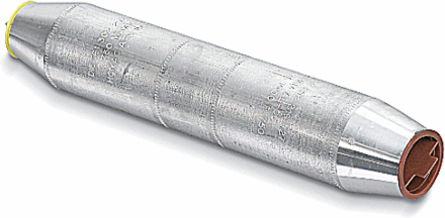

Blackburn ATC 1/0 R 2 Aluminum Tapered Reducing Splices 3 Inch, Dual-Rated for 1/0-#2 Conductors
Blackburn ATC 1/0 R 2 Aluminum Tapered Reducing Splices 3 Inch, Dual-Rated for 1/0-#2 Conductors
- MPN: ATC 1/0 R 2
- PPN: T-B-ATC 1/0 R 2
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$66.97/ EA
Description
Aluminum Tapered Reducing Splices, wire size 2-1/0
Features
- Solid Center Stop Ensures Proper Cable Insertion, Prevents Moisture Migration.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
- All Splices Marked with Conductor Sizes and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Dual-Rated. Use with aluminum and copper conductors. Solid Center Stop assures proper cable insertion, prevents moisture migration. Conductor bores coated with oxide inhibitor to prevent oxidation. All Splices marked with Die References for Easy Identification.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Bare
IGCC4669 Wire or cable compression splice
TypeAluminum Tapered Reducing Splices
ApplicationTapered ends enable use in High-Voltage Applications up to 69kV.
SizeLength 3 inches
Conductor Range1/0-#2
MaterialAluminum
InsulationNone
Packaging
- Outer Quantity
- 50
- Weight Uom
- 0.07 lbs. Each
Outer Dimensions (inches)1x1x1
