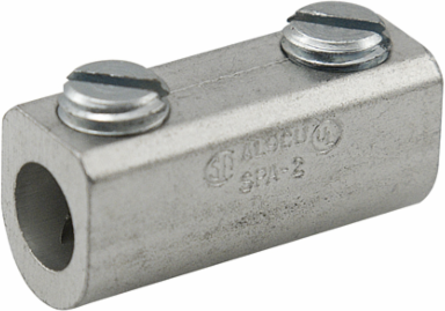

ILSCO SPA-2 Aluminum Splicer/Reducer, Dual Rated, Conductor Range 2-14, Tin Plated, UL, CSA
- MPN: SPA-2
- UPC: 783669857009
- PPN: ILC-SPA-2
CAD
$20.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Splicer/Reducer, Dual Rated, Conductor Range 2-14, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.55 in |
|---|---|
| Weight | 0.030824349307667 lbs |
| Length | 1.19 in |
|---|---|
| Width | 0.45 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Drive Type Main | Slotted |
|---|---|
| Weight BX (LB) | 1.493 |
| Height BX (IN) | 2.25 |
|---|---|
| Width BX (IN) | 5 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 2 |
| Number of Ports Tap | 1 |
| Wire Orientation | Parallel |
| Contains DE-OX® | No |
|---|---|
| Number of Poles | 1 |
| Number of Ports / Wireways | 2 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Steel |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
Conductor Ranges
| Conductor Range AL Solid (Secondary, tap, load) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Stranded (Secondary, tap, load) | 2 Str - 14 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 10 Sol - 14 Sol |
| Conductor Range CU Stranded (Secondary, tap, load) | 2 Str - 14 Str |
| Conductor Range AL Stranded (Primary, run, main, line) | 2 Str - 14 Str |
|---|---|
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
| Conductor Range CU Stranded (Primary, run, main, line) | 2 Str - 14 Str |
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-1 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366985700 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 8 AWG = 40, 2/0 - 2 AWG = 50, 4 - 6 AWG = 45, 10 - 14 AWG = 35 |
| Wire Binding Screw Size | 5/16 |
|---|
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
