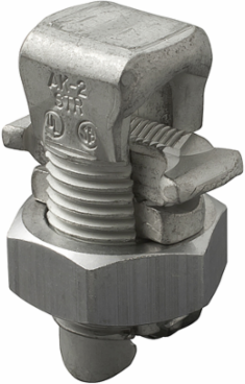

ILSCO AK-2/0 Aluminum Split Bolt, Main Range 2/0-2, Tap Range 2/0-8, Tin Plated, UL, CSA
- MPN: AK-2/0
- UPC: 783669008340
- PPN: ILC-AK-2/0
CAD
$61.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Split Bolt, Main Range 2/0-2, Tap Range 2/0-8, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.88 in
- Weight
- 0.1062 lbs
Length1.92 in
Width1.12 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 7/8, 1-1/8
- Height BX (IN)
- 2
- Width BX (IN)
- 6.1875
Drive Type MainExternal Hex
Weight BX (LB)3.115
Testing Standards
- CSA File Number
- 72632
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number670B
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Connector Finish
- Tin
MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 2/0 Str - 2 Str COMPACT
- Conductor Range CU Stranded (Primary, run, main, line)
- 2/0 Str - 2 Str COMPACT
Conductor Range AL Stranded (Secondary, tap, load)2/0 Str - 8 Str
Conductor Range CU Stranded (Secondary, tap, load)2/0 Str - 8 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedYes
UPC Code78366900834
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque385
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
