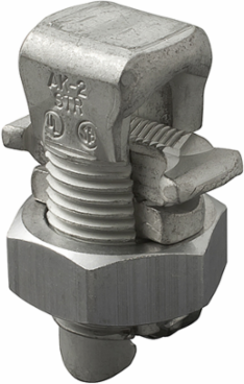

ILSCO AK-2 Aluminum Split Bolt, Main Range 2-6, Tap Range 2-8, Tin Plated, UL, CSA
- MPN: AK-2
- UPC: 783669008326
- PPN: ILC-AK-2
CAD
$29.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Split Bolt, Main Range 2-6, Tap Range 2-8, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.69 in
- Weight
- 0.0625 lbs
Length1.88 in
Width0.94 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 11/16, 15/16
- Height BX (IN)
- 4.25
- Width BX (IN)
- 7.75
Drive Type MainExternal Hex
Weight BX (LB)6.741
Testing Standards
- CSA File Number
- 72632
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number670B
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
Connector FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 2 Str - 6 Str COMPACT
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str - 6 Str COMPACT
Conductor Range AL Stranded (Secondary, tap, load)2 Str - 8 Str
Conductor Range CU Stranded (Secondary, tap, load)2 Str - 8 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedYes
UPC Code78366900832
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque275
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
