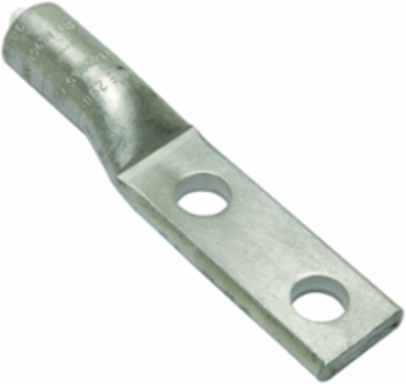

Burndy YA4CA8DT Aluminum Compression Terminal, 4 AWG, 600V to 35kV, 2-Hole Design
- MPN: YA4CA8DT
- UPC: 781810441084
- PPN: BUR-10067708
CAD
$117.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90° C600 Volts to 35 KV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 114 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 0.88 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.88 in
Dimension - D inch3.11 in
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch4.50 in
Dimension - Outside Diameter inch0.34 in
Dimension - Z inch0.73 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 4 AWG
- Conductor - Copper Str Size
- 4 AWG
Conductor - AL Str Size Range4 AWG
Conductor - Copper Str Size Range4 AWG
General
- Color Code
- Green
- Die Index
- 375
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Temperature Rating
- 194
- UPC
- 781810441084
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialAluminum
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC 12 Digit7818104410844
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
