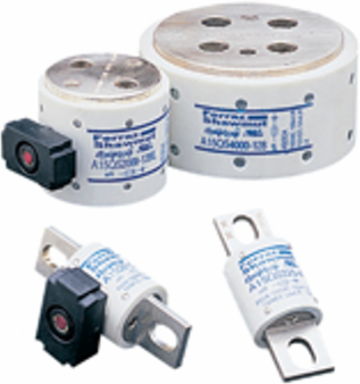

Mersen Z230091 Amp-Trap A15QS High-Speed Fuse 150 VAC 150 VDC 100 kA I.R. Cylindrical Style
Mersen Z230091 Amp-Trap A15QS High-Speed Fuse 150 VAC 150 VDC 100 kA I.R. Cylindrical Style
- MPN: Z230091
- UPC: 782001315481
- PPN: FER-Z230091
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$67.77/ EA
Description
A15QS Amp-trap Form 101 Semiconductor Protection fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC.The A15QS product line's compact design is perfect for those applications that have limitations on available space.
Features
- Controlled arc voltage reduces stress to circuit components during fuse clearing.
- Choice of mounting types provides options for unique termination requirements
- Low I²t minimizes damage to protected components on short circuit.
Specifications
Product Details
- I.R. AC
- 100 kA
- Speed / Characteristic
- High-Speed
- AC Voltage
- 150 VAC
- DC Voltage
- 150 VDC
- I.R DC
- 100 kA
- Ampere Range
- 1 to 6000 A
- Standards
- UL Recognized Component Guide JFHR8, File E60314 Some Ratings RoHS Compliant
- ROHS Compliant
- Consult Technical Services
- Mounting
- Clip Bolted
CE conformityConsult Technical Services
Materials ContactTin-plated Brass Sliver Plated Brass
UL CertificationE60314 JFHR2.E60314
Body MaterialCeramic GMG
Body StyleCylindrical Non Rejection Cylindrical With Blades Cylindrical Hockey Puck
Connection Terminal TypeFerrule Blade Hockey Puck
ApplicationsProtection of AC/DC drives, UPS, Rectifiers and other equipment of 150 volts or less
Lead FreeConsult Technical Services
