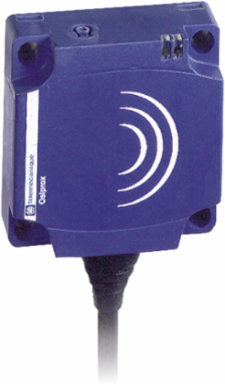

Telemecanique Sensors XS9C111A2L2 Inductive proximity sensors XS, inductive sensor XS9 40x40x15, PBT, Sn15mm, 24 VDC, cable 2 m
Telemecanique Sensors XS9C111A2L2 Inductive proximity sensors XS, inductive sensor XS9 40x40x15, PBT, Sn15mm, 24 VDC, cable 2 m
- MPN: XS9C111A2L2
- PPN: TES-XS9C111A2L2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$423.93/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. This sensor is suitable for position, displacement and deformation control/monitoring applications. It is a flat format sensor (40mm x 40mm x 15mm) , flush mountable in metal. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 15mm. Two-wire DC, 12V to 24V, analogue output signal 4mA to 20 mA. This sensor is ECOLAB certified.
Specifications
Environment
- Product Certifications
- CSA || UL || Ecolab
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Current Consumption
- 0...4 mA no-load
- Linearity Error
- +/- 2 mA
- Repeat Accuracy
- <= 3% of Sr
- Marking
- CE
- Switching Frequency
- <= 1000 Hz
- Wire Insulation Material
- PVC
- Cable Composition
- 3 x 0.34 mm²
- Front Material
- PBT
Height40 mm
Status Ledwithout
Operating Zone2-15 mm
Maximum Output Current Drift10 %
Supply Voltage Limits15-36 V DC
Detection Facefrontal
Width40 mm
Depth15 mm
Specifications
- Electrical Connection
- cable
- Type Of Output Signal
- analogue
- Cable Length
- 2 m
- Sensor Name
- XS9
- Size
- 15 mm
- Ip Degree Of Protection
- IP68 double insulation IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Sensor Design
- flat form 40 x 40 x 15
- Output Circuit Type
- DC
[Us] Rated Supply Voltage24 V DC
Range Of ProductTelemecanique Inductive proximity sensors XS
Analogue Output Range4...20 mA
Materialplastic
Wiring Technique2-wire
Series NameApplication
[Sn] Nominal Sensing Distance15 mm
Detector Flush Mounting Acceptanceflush mountable
Enclosure MaterialPBT
