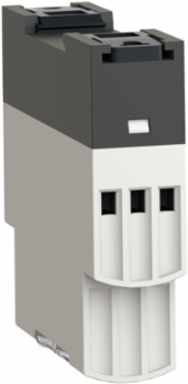

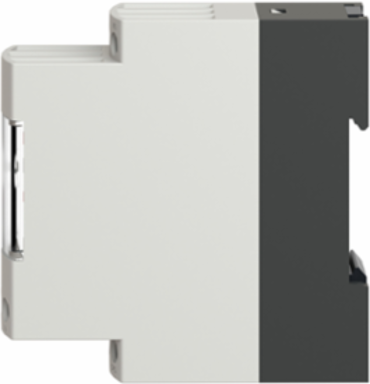

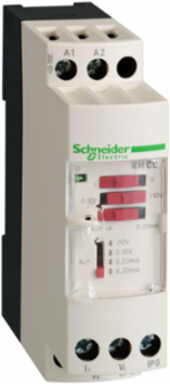

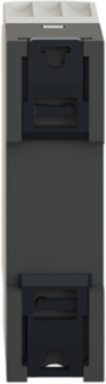

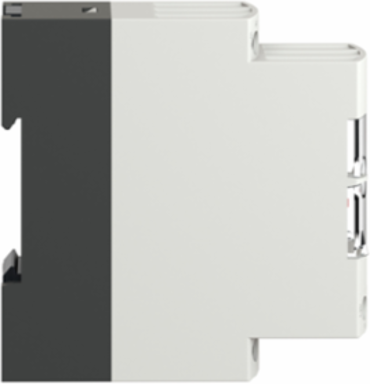

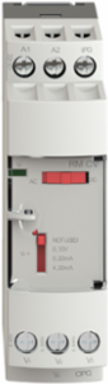

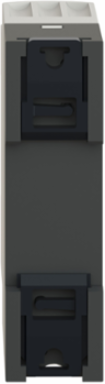

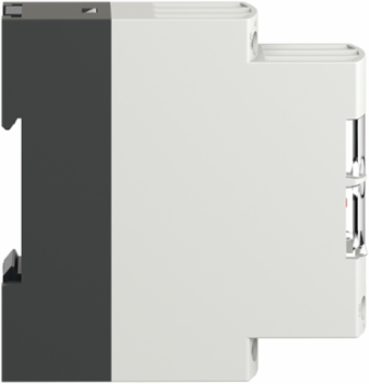

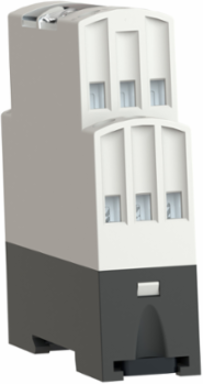

Schneider Electric RMCV60BD Harmony Analog Voltage/Current Converter 0-500V to 0-10V, 4-20mA
- MPN: RMCV60BD
- PPN: SCH-RMCV60BD
- UNSPSC: 32151603
CAD
$294.58
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

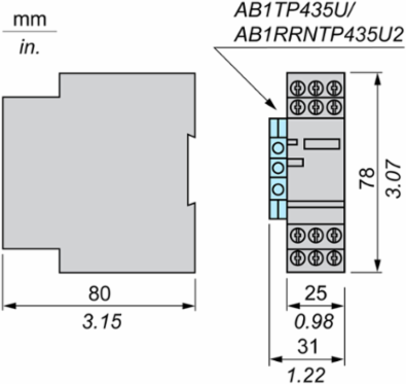

This voltage/current converter is part of the range of interfaces Harmony Analog. This cost effective converter converts a 0…50 V, 0…300 V, 0…500 V AC/DC signal to a switchable 0…10 V, ± 10 V, 0…20 mA or 4…20 mA signal. Its supply voltage is 24V DC, isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 0 It weighs 150g and its dimensions are, 25mm wide, 78mm high, 80mm deep. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 It can be mounted on 35mm DIN rail or fixed by screws on a mounting plate. 0 0 0
Features
- Designed to convert the signals from sensors or electrical measurement devices into standard electrical signals
- Experience unprecedented accuracy, predictive maintenance, and superior security
- Reverse polarity, overvoltage and short circuit protection
- Output with fallback value if no input signal is present
- Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water
- Compatible with automation platforms and controllers
- Quick and intuitive setting
- Easy to use
- Secure setting sealable protective cover
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 115 g |
|---|
Complementary Attributes
| Ui Rated Insulation Voltage | 2 kV |
|---|
| Us Rated Supply Voltage | 24 V DC +/- 20 %, isolated |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Analogue Output Current2 | -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken, -30-0 mA 0...20 mA no input or input wire broken4-30 mA 4...20 mA no input or input wire broken |
| Current Consumption | <= 70 mA voltage output, <= 70 mA voltage output, <= 90 mA current output, <= 90 mA current output<= 70 mA voltage output, <= 70 mA voltage output, <= 90 mA current output, <= 90 mA current output |
| Protection Type | short-circuit protection on output, reverse polarity protection on output, overvoltage protection on output (+/- 30 V) |
| Certificate Agency | UL, GL, CSA |
| Carbon Footprint Of The Distribution Phase A4 | 0.0148373383, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0008937831, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 21 kg CO2 eq., 20.6872727273 |
| Local Publishable Date | 2026-08-07 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2511011EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Fixing Mode | by screws (mounting plate)clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Product Or Component Type | voltage/current converter |
| Resistance To Electrostatic Discharge | 6 kV in contact)IEC 61000-4-2 level 38 kV in air)IEC 61000-4-2 level 3 |
| Returnability | Yes |
| Software Version | EIME v5.5 |
| Tightening Torque | 0.6-1.1 N.m |
| Vibration Resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| Data Source | extrapolated product |
| Customs Code | 8536698000 |
| Functional Unit Description | To convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 35.04 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Analogue Output Voltage2 | -15...0 V no input or input wire broken, -15...0 V no input or input wire broken-15...0 V no input or input wire broken, -15...0 V no input or input wire broken |
| Fire Resistance | 850 °C IEC 60695-2-1, 850 °C UL |
| Safety Reliability Data | MTTFd = 21.6 years, B10d = 20000 |
| Disturbance Radiated/Conducted | CISPR 11, CISPR 22 group 1 - class B |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.0588894948 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 3 kg CO2 eq., 2.6536444855 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Local Signalling | LED (green) for power ON |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony Analog |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 on input-output)2 kV IEC 61000-4-4 on power supply) |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 23 kg CO2 eq. |
| Database Version | 2015-04 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-50 °C mounting side by side, 0-60 °C 2 cm spacing |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 23.4155378289 |
| Environmental Disclosure | ENVPEP2511011EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2016-09-01 |
| Psr Version | PSR-0005-ed1-2012 12 11 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2511011EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2511011EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | voltage/current converter |
|---|
| Range Of Product | Harmony Analog |
|---|
ETIM
| ETIM 8 | EC002046 |
|---|---|
| ETIM 10 | EC002046 |
| ETIM 9 | EC002046 |
|---|
Output Attributes
| Analogue Output Type | current 0...20 mA <= 500 Ohm switchable, current 4...20 mA <= 500 Ohm switchable, voltage 0...10 V >= 100 kOhm switchable |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | voltage 0...300 V AC/DC 50/60 Hz, voltage 0...50 V AC/DC 50/60 Hz, voltage 0...500 V AC/DC 50/60 Hz |
|---|
