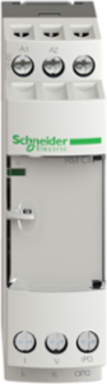

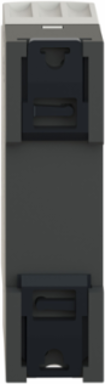

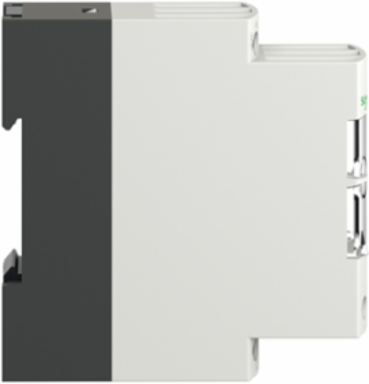

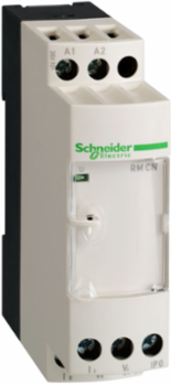

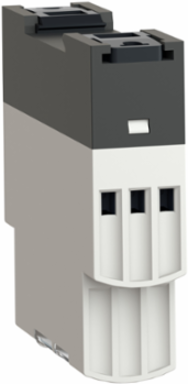

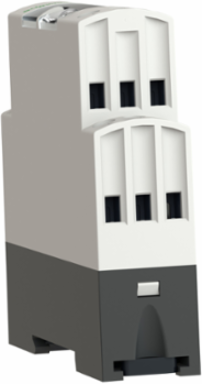

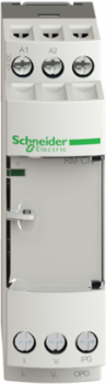

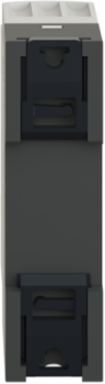

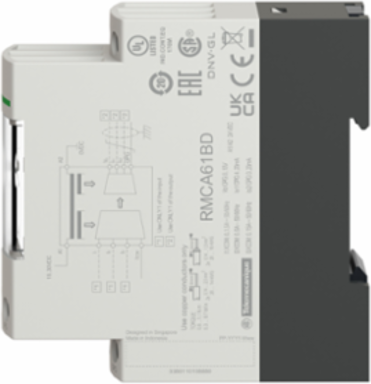

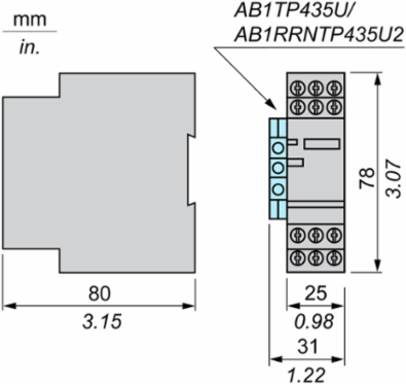

Schneider Electric RMCN22BD Harmony Analog Isolated Voltage/Current Converter 24V DC
- MPN: RMCN22BD
- PPN: SCH-RMCN22BD
CAD
$157.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This voltage/current converter is part of the range of Harmony Analog interfaces. This cost effective converter converts a 0 to 10 V signal to a 4 to 20mA signal or vice versa. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output<= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output
- Fixing Mode
- by screws (mounting plate), clip-on (35 mm symmetrical DIN rail)
- Resistance To Electrostatic Discharge
- 6 kV in contact)IEC 61000-4-2 level 3, 8 kV in air)IEC 61000-4-2 level 3
- Safety Reliability Data
- MTTFd = 73.2 years, B10d = 67582
- Disturbance Radiated/Conducted
- CISPR 22 group 1 - class B, CISPR 11
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0614499076
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.7690203327
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Marking
- CE
- Product Or Component Type
- voltage/current converter
- Returnability
- Yes
- Software Version
- EIME v5.5
- Tightening Torque
- 0.6-1.1 N.m
- Vibration Resistance
- 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
- Database Version
- 2015-04
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To convert signals emitted by sensors or electrical measurement devices, into standard electrical signals that are compatible with automation platforms and controllers (thermal processes, speed, etc.). during 10 years with a 100% use rate, in compliance with French standard.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 63.072
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %, non isolated
- Package Weight(Lbs)
- 100.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Fire Resistance850 °C IEC 60695-2-1, 850 °C UL
Protection Typeshort-circuit protection on output, overvoltage protection on output (+/- 30 V), reverse polarity protection on output
Resistance To Fast Transients1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply)
Certificate AgencyGL, CSA, UL
Carbon Footprint Of The Distribution Phase [A4]0.0154824399, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0009326433, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]37 kg CO2 eq., 37.2370909091
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2511011EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Local SignallingLED (green) for power ON
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Analog
Shock Resistance50 gn 11 ms IEC 60068-2-27
Sustainable PackagingYes
Total Lifecycle Carbon Footprint40 kg CO2 eq.
Pep CodeENVPEP2511011EN
Pep Verification Date2016-09-01
Psr VersionPSR-0005-ed1-2012 12 11
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia (Schneider Electric Batam)
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
[Ui] Rated Insulation Voltage2 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side, 0-60 °C 2 cm spacing
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 40.0839762326
- Environmental Disclosure
- ENVPEP2511011EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2016-09-01
- Psr Version
- PSR-0005-ed1-2012 12 11
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2511011EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2511011EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- voltage/current converter
Range Of ProductHarmony Analog
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Output Attributes
- Analogue Output Type
- current 4...20 mA <= 500 Ohm by cabling, voltage 0...10 V >= 100 kOhm by cabling
- Analogue Output Current
- 4-30 mA no input or input wire broken
Analogue Output Voltage-15...0 V no input or input wire broken, -15...0 V no input or input wire broken, -15...0 V no input or input wire broken, -15...0 V no input or input wire broken
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
