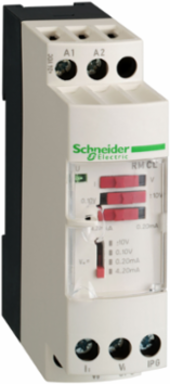

Schneider Electric RMCL55BD Harmony Analog Converter 24V DC 0-20 mA ±10V Isolated
- MPN: RMCL55BD
- PPN: SCH-RMCL55BD
CAD
$274.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This voltage/current converter is part of the range of Harmony Analog. It allows conversion of the most common signals. Its supply voltage is 24V DC, isolated. It features four inputs with voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It has four outputs with a switchable voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.120Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Analog
- Product Or Component Type
- voltage/current converter
Analogue Output Typecurrent 0...20 mA <= 500 Ohm switchable || current 4...20 mA <= 500 Ohm switchable || voltage +/- 10 V >= 100 kOhm switchable || voltage 0...10 V >= 100 kOhm switchable
Analogue Input Typecurrent 0...20 mA || current 4...20 mA || voltage +/- 10 V DC || voltage 0...10 V DC
Complementary
- Current Consumption
- <= 70 mA voltage output || <= 90 mA current output
- Measurement Error
- +/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) || +/- 1 % of full scale 20 °C
- [Ui] Rated Insulation Voltage
- 2 kV
- Analogue Output Voltage
- 11...15 V - 10...10 V no input or input wire broken voltage || 11...15 V 0...10 V no input or input wire broken voltage || -15...0 V 0...20 mA no input or input wire broken current || -15...0 V 4...20 mA no input or input wire broken current
- Fixing Mode
- by screws (mounting plate) || clip-on (35 mm symmetrical DIN rail)
- Local Signalling
- power ON LED green)
- Protection Type
- reverse polarity protection on output || short-circuit protection on output || overvoltage protection on output (+/- 30 V)
- Analogue Output Current
- 22-30 mA 0...20 mA no input or input wire broken voltage || 22-30 mA 4...20 mA no input or input wire broken voltage || -30-0 mA 0...20 mA no input or input wire broken current || 4-30 mA 4...20 mA no input or input wire broken current
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %, isolated
Safety Reliability DataB10d = 20000 || MTTFd = 21.6 years
Clamping Connection Capacity2 x 1.5 mm² || 1 x 2.5 mm²
MarkingCE
Net Weight0.12 kg
Surge Withstand0.5 kV 1.2/50 µs IEC 61000-4-5
Temperature Coefficient200 ppm/°C
Tightening Torque0.6-1.1 N.m
Repeat Accuracy+/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
Environment
- Product Certifications
- UL || GL || CSA
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
- Vibration Resistance
- 5 gn 10-100 Hz)IEC 60068-2-6
- Disturbance Radiated/Conducted
- CISPR 22 group 1 - class B || CISPR 11
- Ambient Air Temperature For Storage
- -40-85 °C
- Fire Resistance
- 850 °C IEC 60695-2-1 || 850 °C UL
StandardsIEC 60947-1 || IEC 60584-1
Shock Resistance50 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP20 terminal block) || IP50 housing)
Pollution Degree2 IEC 60664-1
Resistance To Electrostatic Discharge6 kV in contact)IEC 61000-4-2 level 3 || 8 kV in air)IEC 61000-4-2 level 3
Resistance To Fast Transients1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1607005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1607005EN
