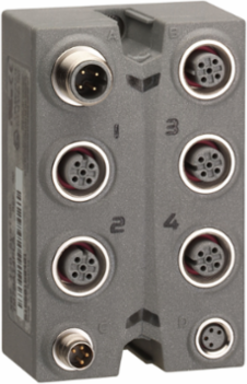

Schneider Electric TM7BAM4CLA Analog I/O Expansion Block, IP67, 4 I/O, 0-20 mA, M12 Connector
- MPN: TM7BAM4CLA
- PPN: SCH-TM7BAM4CLA
CAD
$678.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TM7BAM4CLA Analog I/O Expansion Block from Schneider Electric is an essential component for enhancing your automation and control systems. With an IP67 rating, this expansion block ensures robust protection against dust and water intrusion, making it suitable for use in challenging environments. It features four input/output channels that support a 0-20 mA signal range, utilizing reliable M12 connectors for secure and efficient connections. This product is designed to seamlessly integrate into various PLC, HMI, and data acquisition applications, catering to diverse industrial needs while maintaining high performance and reliability.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, France, Italy
Depth42 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- 1 male connector M12 - B coding - 4 ways bus IN1 female connector M12 - B coding - 4 ways bus OUT1 male connector M8 - 4 ways power IN, 1 female connector M8 - 4 ways power OUT4 female connectors M12 - A coding - 5 ways actuator
- Certificate Agency
- cURus, C-tick, GOST-R, ATEX II 3g EEx nA II T5
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2939993704845378, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 12.650672184145073
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409005EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- false
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Fixing Mode
- by 2 screws
- Load Impedance Ohmic
- <= 400 Ohm<= 400 Ohm
- Network Type
- DC
- Power Consumption In W
- 1.1 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM7
- Sampling Duration
- 400 µs for all input
- Shock Resistance
- 30 gn 11 msIEC 60721-3-5 Class 5M3
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Vibration Resistance
- 7.5 mm constant amplitude 2-8 Hz) IEC 60721-3-5 Class 5M32 gn constant acceleration 8-200 Hz) IEC 60721-3-5 Class 5M34 gn constant acceleration 200-500 Hz) IEC 60721-3-5 Class 5M3
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Fieldbus Connection Over Separate Bus Coupler Possible
- false
- Pep Code
- ENVPEP1409005_V2
- Pep Verification Date
- 2025-12-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Recyclability Potential In %
- 10
- Width Nominal
- 53 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Silcl Acc. To En 62061
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 231.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling2 LEDs bus diagnostic, 2 LEDs sensor/actuator power supply status
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]kg CO2 eq., 0
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]85 kg CO2 eq., 84.69252033360647
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Bus TypeTM7 bus
Enclosure MaterialPlastic
Front Installation Possiblefalse
MarkingCE
Operating Positionany position
Power Dissipation In W3.8 W
Product Or Component Typeanalog I/O expansion block
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityNo
Sensor Power Supply24-24 V
Software Versionv6.2.5-6
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint98 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
System Accessoryfalse
Database Version2024-01
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo communicate with the remote I/O 100% of the time, for 10 years with a dissipated power of 27,41W in harsh environment.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh328.5
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal85 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 97.63719188823607
- Ambient Air Temperature For Storage
- -25-85 °C-25-85 °C
- Environmental Disclosure
- ENVPEP1409005_V2
- Ip Degree Of Protection
- IP67
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 5-95 % without condensation or dripping water
- Pep Verification Date
- 2025-12-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-10-60 °C-10-60 °C
Circularity ProfileENVEOLI1409005EN
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP1409005_V2
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog I/O expansion block
