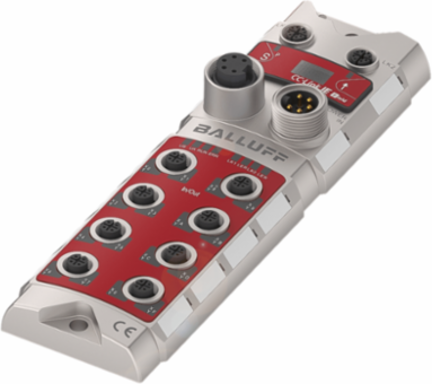

Balluff BNI CIE-302-105-Z015 Network blocks for CC-Link IE-Field BNI CIE-302-105-Z015
- MPN: BNI CIE-302-105-Z015
- PPN: BAL-BNI0095
CAD
$727.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
We have developed highly functional and practical fieldbus modules for the perfect connection of I/O systems to the open, deterministic high-speed network CC-Link IE/Field. This new generation outshines everything before it with its excellent configuration and diagnostics options.
Documentation & Downloads
Specifications
Key Specifications
| Principle of operation | Active splitter |
|---|---|
| Operating voltage Ub | 18-30.2 VDC |
| Connection (COM 2) | M12x1-Female, 8-pin, X-coded |
| Connection (supply voltage OUT) | 7/8"-Female, 5-pin |
| Digital inputs | 16x PNP, Type 3 |
| Configurable inputs/outputs | yes |
| Current sum UA, actuator | 9.0 A |
| Dimension | 68 x 37.9 x 224 mm |
| IP rating | IP67 |
| Interface | CC-Link IE Field V0 |
|---|---|
| Connection (COM 1) | M12x1-Female, 8-pin, X-coded |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin |
| Connection ports | 8x M12x1-Female, 5-pin, A-coded |
| Digital outputs | 16x PNP |
| Output current max. | 2 A |
| Housing material | Zinc, Die casting |
| Ambient temperature | -5-70 °C |
