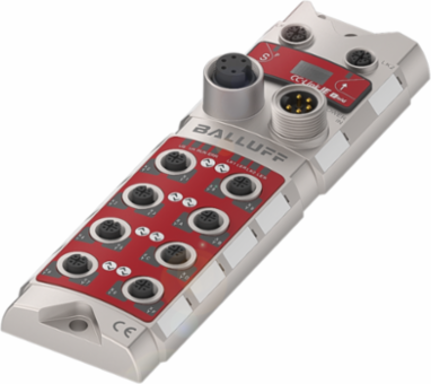

Balluff BNI CIE-508-105-Z015 CC-Link IE-Field Network Block, 8x IO-Link, IP67, 68 x 37.9 x 224 mm
- MPN: BNI CIE-508-105-Z015
- PPN: BAL-BNI008C
CAD
$1227.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
CC-Link IE-Field Network Block, 8x IO-Link, IP67, 68 x 37.9 x 224 mm
Documentation & Downloads
Specifications
Additional
- IO-Link Ports
- 8
- IP Rating
- IP67
- Current sum US, sensor
- 9.0 A
- Country of Origin
- Hungary
- Ambient Temperature
- -5...70 °C
- Operating Voltage Ub
- 18...30.2 VDC
- Connection (COM 1)
- M12x1-Female, 8-pin, X-coded
- Configurable Inputs/Outputs
- Yes
- Output Current Max.
- 2 A
- IO-Link Version
- 1.1
- Connection Slots
- 8x M12x1-Female, 5-pin, A-coded
InterfaceCC-Link IE Field V0
Dimensions68 x 37.9 x 224 mm
Housing MaterialZinc, Die casting
Connection (Supply Voltage IN)7/8"-Male, 5-pin
Port ClassType A
Digital Outputs16x PNP
Connection (COM 2)M12x1-Female, 8-pin, X-coded
Digital Inputs16x PNP, Type 3
Current sum UA, actuator9.0 A
Connection (Supply Voltage OUT)7/8"-Female, 5-pin
