Balluff

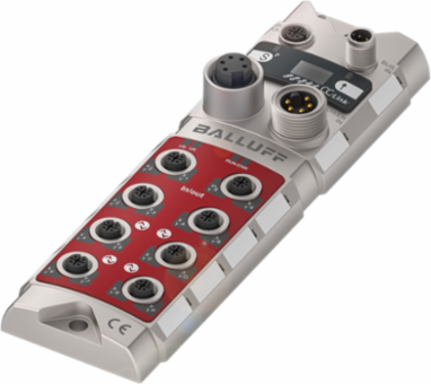

Balluff BNI CCL-502-100-Z001 Network blocks for CC-Link - BNI0040

Network blocks for CC-Link - BNI0040
  • MPN: BNI CCL-502-100-Z001
  • PPN: BAL-BNI0040

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$863.02/ EA

Specifications

Specifications

Country of Origin
Hungary
Operating voltage Ub
18...30.2 VDC
Connection (COM 2)
M12x1-Female, 4-pin, A-coded
Connection (supply voltage OUT)
7/8"-Female, 5-pin
Digital inputs
16x PNP, Type 2
Configurable inputs/outputs
yes
Current sum US, sensor
9.0 A
Housing material
Zinc, Die casting
Ambient temperature
-5...70 °C
Auxiliary interfaces
4x IO-Link
Port-class
Type A
InterfaceCC-Link V1.1
Connection (COM 1)M12x1-Male, 4-pin, A-coded
Connection (supply voltage IN)7/8"-Male, 5-pin
Connection slots8x M12x1-Female, 5-pin, A-coded
Digital outputs16x PNP
Output current max.2 A
Current sum UA, actuator9.0 A
Dimension68 x 37.9 x 224 mm
IP rating per IEC 60529IP67
IO-Link version1.1
