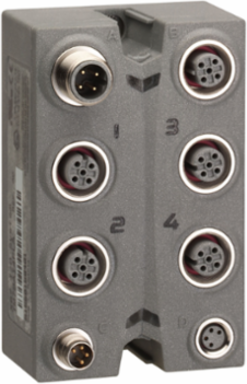

Schneider Electric TM7BAM4VLA Analog I/O Expansion Block, 2 AI/2 AO, +/-10 V, IP67, M12 Connector
- MPN: TM7BAM4VLA
- PPN: SCH-TM7BAM4VLA
CAD
$727.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Analog I/O Expansion Block by Schneider Electric is an essential component for expanding the capabilities of your automation systems. This unit features two analog inputs and two analog outputs, supporting a voltage range of +/-10 V, making it well-suited for various applications requiring precise data acquisition and control. With an IP67 rating, it ensures protection against dust and water, making it reliable for both indoor and outdoor environments. The M12 connector facilitates secure and efficient connections, streamlining your setup while maintaining robust performance in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria
Depth42 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- 1 male connector M12 - B coding - 4 ways bus IN1 female connector M12 - B coding - 4 ways bus OUT1 male connector M8 - 4 ways power IN, 1 female connector M8 - 4 ways power OUT4 female connectors M12 - A coding - 5 ways actuator
- Certificate Agency
- cURus, GOST-R, C-tick, ATEX II 3g EEx nA II T5
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.28127212500901666
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 12.103024037645286
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409005EN
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Bus Type
- TM7 bus
- Enclosure Material
- Plastic
- Front Installation Possible
- false
- Network Type
- DC
- Power Consumption In W
- 1.1 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM7
- Sampling Duration
- 400 µs for all input
- Shock Resistance
- 30 gn 11 msIEC 60721-3-5 Class 5M3
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Vibration Resistance
- 7.5 mm constant amplitude 2-8 Hz) IEC 60721-3-5 Class 5M32 gn constant acceleration 8-200 Hz) IEC 60721-3-5 Class 5M34 gn constant acceleration 200-500 Hz) IEC 60721-3-5 Class 5M3
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- System Accessory
- false
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To communicate with the remote I/O 100% of the time, for 10 years with a dissipated power of 27,41W in harsh environment.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 328.5
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 85 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling2 LEDs bus diagnostic, 2 LEDs sensor/actuator power supply status
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]85 kg CO2 eq., 84.69252033360647
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Bearing Track Assembly Possiblefalse
Electromagnetic CompatibilityEN/IEC 61000-4-6
Fixing Modeby 2 screws
MarkingCE
Operating Positionany position
Power Dissipation In W3.8 W
Product Or Component Typeanalog I/O expansion block
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityNo
Sensor Power Supply24-24 V
Software Versionv6.2.5-6
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint97 kg CO2 eq.
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Pep CodeENVPEP1409005_V2
Pep Verification Date2025-12-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Austria, AT
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Turkey, TR
Recyclability Potential In %10
Width Nominal53 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Silcl Acc. To En 62061false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)221.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Carbon Footprint
- 97.07681649626076
- Ambient Air Temperature For Storage
- -25-85 °C-25-85 °C
- Environmental Disclosure
- ENVPEP1409005_V2
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1409005_V2
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Ambient Air Temperature For Operation-10-60 °C-10-60 °C
Circularity ProfileENVEOLI1409005EN
Ip Degree Of ProtectionIP67
Packaging Made With Recycled CardboardNo
Relative Humidity5-95 % without condensation or dripping water
Pep Verification Date2025-12-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- analog I/O expansion block
Range Of ProductModicon TM7
