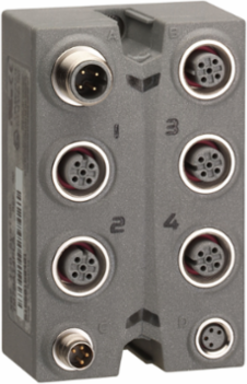

Schneider Electric TM7BAI4CLA Analog I/O Expansion Block, 4 AI, IP67, 0-20 mA, M12 Connector
- MPN: TM7BAI4CLA
- PPN: SCH-TM7BAI4CLA
CAD
$647.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enhance your automation systems with the Schneider Electric TM7BAI4CLA Analog I/O Expansion Block, designed specifically for integration into advanced control environments. This expansion block features four analog inputs with a measurement range of 0-20 mA, allowing for precise monitoring and control of various processes. Its IP67 rating ensures robust protection against dust and water, making it suitable for demanding industrial applications. Equipped with M12 connectors, installation and connectivity are streamlined, ensuring that this module integrates seamlessly with your existing PLC and HMI setups.
