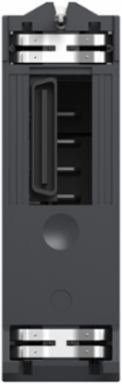

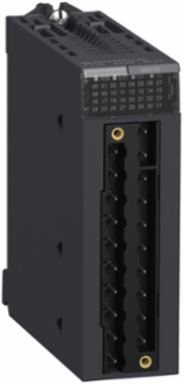

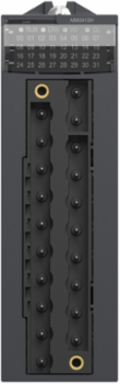

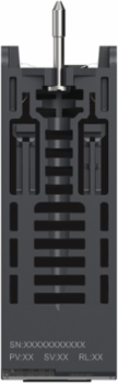

Schneider Electric BMXAMI0410H Analog Input Module, 4 Inputs, 0 to 20 mA, IP20, 16-bit
- MPN: BMXAMI0410H
- PPN: SCH-BMXAMI0410H
CAD
$1770.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 4 inputs with 16bit resolution for severe environments. It is an input module with a power consumption of 1.3W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.143kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil |
|---|
Complementary Attributes
| Maximum Conversion Value | +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V +/- 5 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA |
|---|
| Minimum Crosstalk Attenuation | 80 dB |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Digital Value Format | - 32768 to + 32767 in maximum user scale, +/- 10000 by default, - 32768 to + 32767 in maximum user scale, +/- 10000 by default |
| Isolation Voltage | 300 V DC between channels1400 V DC between channels and ground, 1400 V DC between channels and bus |
| Measurement Resolution | 0.35 mV +/- 10 V, 0.35 mV +/- 5 V, 0.35 mV 0...10 V, 0.35 mV 0...5 V, 0.35 mV 1...5 V0.92 µA +/- 20 mA, 0.92 µA 0...20 mA, 0.92 µA 4...20 mA |
| Status Led | 1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O |
| Certificate Agency | CE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.3229452121 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 23 kg CO2 eq., 23.2540848485 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311046EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Common Mode Rejection | 90 dB |
| Electrical Connection | 20 ways 1 connector |
| Mtbf Reliability | 1200000 H |
| Precision Of Internal Conversion Resistor | 0.1 % - 15 ppm/°C |
| Product Or Component Type | analog input module |
| Protective Treatment | conformal coating |
| Recalibration | internal |
| Shock Resistance | 30 gn |
| Sustainable Packaging | Yes |
| Type Of Filter | first order digital filtering |
| Pep Code | ENVPEP2311046EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 3 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Environmental Characteristic | gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2, hazardous location |
| Measurement Error | <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C0.075 % of full scale +/- 10 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C0.15 % of full scale +/- 20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C |
| Power Consumption In W | 0.82 W 24 V DC typical1.30 W 24 V DC maximum0.32 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum |
| Temperature Drift | 15 ppm/°C +/- 10 V, 15 ppm/°C +/- 5 V, 15 ppm/°C 0...10 V, 15 ppm/°C 0...5 V, 15 ppm/°C 1...5 V30 ppm/°C +/- 20 mA, 30 ppm/°C 0...20 mA, 30 ppm/°C 4...20 mA |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0237989818, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0484627394, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 59 kg CO2 eq., 58.5991843575 |
| Local Publishable Date | 2026-06-14 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current Consumption | 150 mA 3.3 V DC45 mA 24 V DC |
| Fast Read Cycle Time | 1 ms + 1 ms x number of channels used |
| Nominal Read Cycle Time | 5 ms for 4 channels |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | for severe environments |
| Range Of Product | Modicon X80 |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 82 kg CO2 eq. |
| Vibration Resistance | 3 gn |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 89.8776 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Analog/Digital Conversion | 24 bits |
| Package Weight(Lbs) | 180.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 82.2484761394 |
| Environmental Disclosure | ENVPEP2311046EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2311046EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | analog input module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|
| ETIM 9 | EC001420 |
|---|
Surge Protection And Filtering Attributes
| Type Of Filter | first order digital filtering |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | current +/- 20 mA, current 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V |
|---|---|
| Permitted Overload On Inputs | +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 V 1...5 V, +/- 90 mA +/- 20 mA, +/- 90 mA +/- 20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 4...20 mA, +/- 90 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 90 mA +/- 20 mA, +/- 90 mA +/- 20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 4...20 mA |
| Analogue Input Resolution | 16 bits |
| Input Level | high level |
| Input Output Isolation | isolated, isolated |
|---|---|
| Analogue Input Number | 4 |
| Input Impedance | 10 MOhm in voltage mode250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
